Description

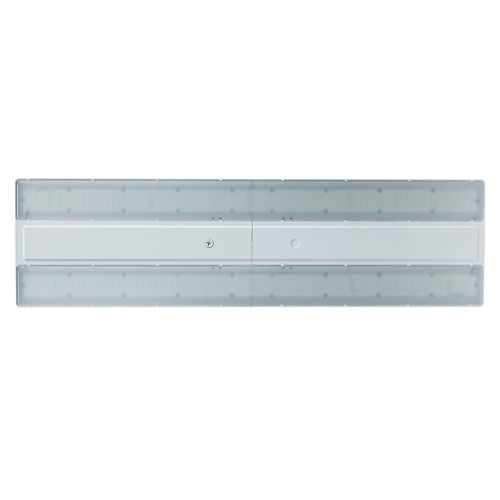

High-Output Linear High Bay For Warehouses And Big-Box Retail | Daylight 5000K, Sensor-Ready 420W
Built for high-ceiling commercial and industrial spaces, the Topaz LHB-63L-W-50K-U Linear Highbay delivers powerful Daylight 5000K illumination and long-lasting performance while simplifying maintenance and control integration for warehouses, big-box retail, and manufacturing facilities.
KEY FEATURES:
- High Output: 420W LED engine producing 63,000 lumens for bright, uniform area lighting.
- Durable Construction: Die-cast aluminum housing with center driver compartment for thermal management and longevity.
- Glare-Control Lens: Diffused lens with 90° wide beam for visual comfort and even distribution.
- Sensor-Ready: Integrated sensor socket supports low-voltage controls; standalone and Bluetooth sensors sold separately.
- Controls & Protection: 0-10V dimming capable, 6kV surge protection and 1/2" KO for controls or wiring.
- Flexible Mounting: Suspension mount ready with V-hook and chain included; surface and pendant mounts sold separately.
APPLICATIONS:
- Ideal for high-ceiling warehouses and distribution centers.
- Well-suited for big-box retail and large-format stores.
- Appropriate for manufacturing facilities, gyms, and industrial spaces.
- Usage Tip: Use suspension mounting with the included V-hook and chain and pair with an OS-PIR hardwired sensor or compatible low-voltage control for automated dimming.
SPECIFICATIONS:
- Product Code: LHB-63L-W-50K-U
- Topaz by Halco SKU: T75841
- Wattage: 420W
- Lumens: 63,000 lm
- Average Life: 50,000 hrs
- Color Temperature: Daylight 5000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 120-277V
- Power Factor: 0.90
- Environment Rating: Damp Location
- Warranty: 5 years
- Weight: 19.84 lb
- Dimensions (L×W×H): 48.03" × 13.38" × 2.95"
CERTIFICATIONS & ADDITIONAL NOTES:
- DLC: DLC 5.1 Premium Qualified
- Safety: UL Listed
- Compliance: RoHS
- Emergency Backup: Emergency backup available (driver options sold separately)
