Description

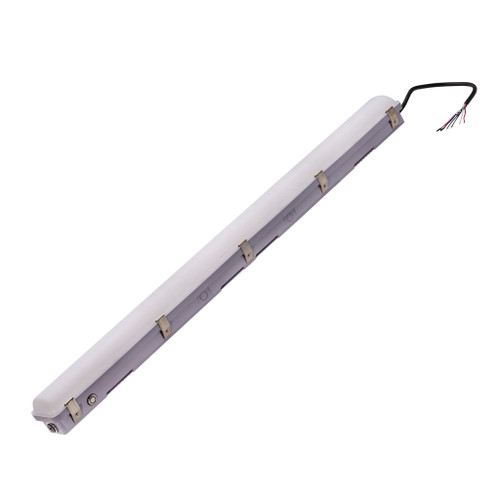

Rugged 4ft Linear Vapor-Tight Fixture With Selectable Wattages And 0-10V Dimming For Industrial Wet Locations
Built for demanding commercial and industrial environments, this 4ft linear vapor-tight fixture delivers flexible lumen and color options while reducing maintenance in wet, high-impact areas. Its selectable wattages and CCT choices allow installers to configure lighting performance on-site for task-specific brightness without stocking multiple SKUs.
KEY FEATURES:
- Field Selectable Power: Choose 30W, 40W or 50W at installation to match application needs.
- CCT Flexibility: Selectable 3500K, 4000K or 5000K for tailored color appearance.
- Rugged, Wet-Location Design: IP66/ NEMA 4X housing with IK09 impact resistance for harsh environments.
- High Output: Delivers up to 7,250 lumens for bright task and area illumination.
- Toolless Service: Stainless-steel latching clips and durable polycarbonate lens simplify access and maintenance.
- Dimming Control: 0-10V dimmable for smooth light level control and energy savings.
- Continuous Run Ready: 1/2" NPT threaded hubs allow conduit or cord entry and end-to-end connections.
APPLICATIONS:
- Ideal for manufacturing floors, warehouses, and production areas requiring robust wet-location lighting.
- Well suited for parking garages and transit stations where impact resistance and moisture protection are needed.
- Approved for food equipment splash zones (ETL Sanitation Listed) - not for direct food contact.
- Installation Tip: Use the selectable wattage/CCT feature to standardize fixtures on-site and reduce inventory complexity.
SPECIFICATIONS:
- Product Code: LVT4-50PCS
- Topaz by Halco SKU: T73814
- Wattage: Selectable 30W, 40W, 50W
- Lumens: 4,300 - 5,800 - 7,250 lm
- Color Temperature: Selectable 3500K, 4000K, 5000K
- CRI: 80
- Voltage: 120-277V
- Dimmable: Yes, 0-10V
- Average Life: 50,000 hours
- Power Factor: 0.9
- Operating Temp Range: -40°C to 55°C (-40°F to 131°F)
- Size: 4 ft
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: ETL Listed; DLC 5.1 Qualified; ETL Sanitation Listed (NSF/ANSI Standard 2) for splash zone applications.
- Ingress & Impact: IP66 / NEMA 4X rated housing with IK09 impact resistance.
- Warranty: 5-year limited warranty.
- Mounting: Surface mount bracket included; J-box, angle, and suspension kits sold separately.
