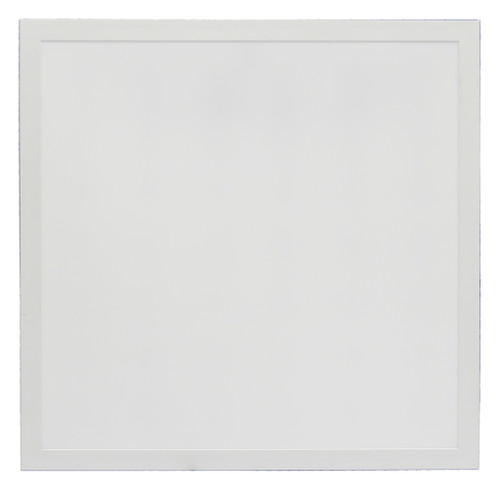

2x2 Flat Panel LED Troffer | Soft White 3000K Warm/Diffuse Office Lighting With 0-10V Dimming
Engineered for quick upgrades in offices, schools, and healthcare spaces, this low-profile 2x2 LED flat panel delivers uniform Soft White illumination while reducing weight and maintenance compared with traditional fixtures. The backlit design and precision optics create smooth, glare-controlled light ideal for drop-ceiling installations.
KEY FEATURES:
- Uniform Illumination: Backlit technology with precision optics provides even, diffuse light across work surfaces.
- Energy Efficient: 30W delivers approximately 3,300 lumens for high output with lower energy use.
- Dimmer-Ready: 0-10V dimming support enables smooth, field-adjustable light levels and controls integration.
- Lightweight Construction: Up to 25% lighter than traditional fixtures for easier handling and installation.
- Flexible Mounting: Compatible with suspension, surface, recessed, or grid installations (mount kits sold separately).
APPLICATIONS:
- Ideal for office ceilings, classrooms, and healthcare facilities requiring consistent ambient lighting.
- Well suited for retail back offices and institutional spaces needing low-glare illumination.
- Works in new construction or remodel projects where thin-profile fixtures are preferred.
- Installation Tip: Use the 0-10V dimming capability to fine-tune brightness for task areas and energy savings.
SPECIFICATIONS:
- Product Code: PL22-30W-30K-D
- Topaz by Halco SKU: TX4168
- Wattage: 30W
- Lumens: 3,300 lm
- Color Temperature: Soft White 3000K
- CRI: 80
- Voltage: 120-277V
- Dimmable: Yes (0-10V)
- Input Frequency: 50/60Hz
- Average Life: 50,000 hrs
- Beam Angle: 120 Degrees
- Power Factor: 0.9
- Min/Max Operating Temp: -20C (-4F) to 45C (113F)
- Product Dimensions: 26" L x 26" W x 4" H
- Weight: 5.6 lbs
- Finish: White powder coat steel frame
- Lens: Polystyrene
- Housing Material: Steel
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Listed, ETL Listed
- Location Rating: Suitable For Damp Locations, IC Rated
- RoHS: Yes
- Warranty: 5-year limited warranty
