Description
2x2 Square LED Backlit Flat Panel | Selectable 20/25/30W and 3500K/4000K/5000K

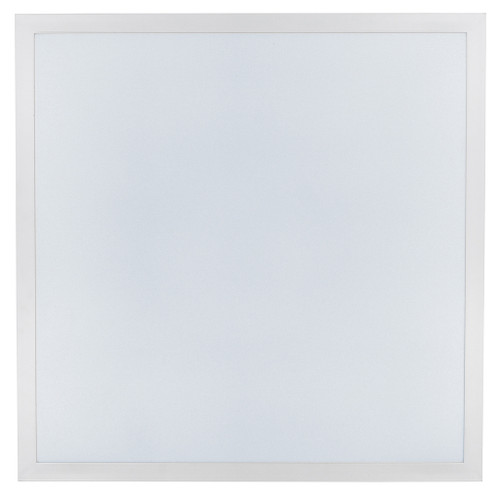

The Topaz PL22-30WPCTS-D is a 2x2 LED backlit flat panel. Wattage and color temperature are selectable, so one fixture can match the light level and color the space needs. It is designed for 2x2 drop ceiling grids.
Features
- Selectable Output: Choose 20W, 25W, or 30W on site to balance energy use and light levels.
- Color Flexibility: CCT selectable between 3500K, 4000K, and 5000K for adaptable visual comfort.
- Low-Profile Backlit Design: White powder coat steel frame with precision optics for even, low-glare illumination.
- Simple Controls: 0-10V dimming compatible for smooth dimming and integration with building controls.
- Durable And Rated For Damp Areas: IP65 wet location rating and ETL listing for reliable performance in commercial settings.
Specifications
- Product Code: PL22-30WPCTS-D
- Size: 2x2 ft
- Fixture Type: Backlit Flat Panel
- Wattage: 20/25/30W selectable
- Lumens: 2,735/3,386/3,983 lm
- Efficacy: Up to 140 lm/W
- Color Temperature: 3500K/4000K/5000K selectable
- CRI: 80
- Voltage: 120-277V
- Dimming: 0-10V
- Beam Angle: 120°
- Rated Life: 50,000 hours
- Weight: 5.1 lbs
- Operating Temperature: -4°F to 113°F
- Dimming Range: 0-10V down to 1%
- Dimensions: 23.74" x 23.74" x 1.67"
- Location Rating: Damp location, IC rated
- Warranty: 5 years
Installation & Compatibility
- Lays into standard 2x2 drop ceiling grids
- Emergency driver available (sold separately) - Topaz BEL5/120-277V-92
- Suspension, surface, and recessed mount kits sold separately
Rebates & Certifications
- ETL Listed
- DLC Premium
- DLC listings often qualify for utility rebates. Check with your local utility before you buy.
Applications
- Ideal for office ceiling grids and commercial drop ceilings.
- Well suited for schools and classrooms requiring flexible light options.
- Good choice for healthcare and institutional corridors, lobbies, and exam areas.
- Installation Tip: Select wattage and CCT at install to match fixture spacing and task requirements for consistent uniformity.
Frequently Asked Questions
Can I change the settings after installation?
Yes. Wattage (20/25/30W) and color temperature (3500K/4000K/5000K) are selectable on the fixture.
Is it dimmable?
Yes, with a 0-10V dimming control.
Does it qualify for rebates?
It is DLC Premium listed, which often qualifies for utility rebates. Check with your local utility.
Can I add emergency backup?
Yes. An emergency driver is available and sold separately.
