Commercial Pole-Mount Sports Floodlight | High Lumens, Detachable Driver And Yoke Mount For Stadiums

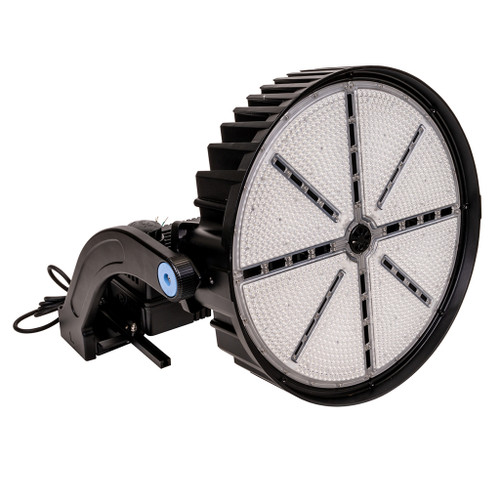

Built for large-area illumination, the Topaz SP-1200PS-50K-HV (SP-1200PS-50K-HV) delivers powerful, selectable output up to 1200W with lumen packages up to 180,000 lm. The durable die-cast aluminum housing, IK08 impact-rated lens, and IP66 wet-location rating make it ideal for stadiums, arenas, and municipal sites where long service life and minimal maintenance are critical.
KEY FEATURES:
- Power Select: Selectable 800W, 1000W or 1200W outputs to match site requirements and reduce energy waste.
- High Output: Configurable lumen ranges from 128,000 to 180,000 lm for bright, uniform field illumination.
- Rugged Construction: Heavy-duty black die-cast aluminum housing with IK08 impact-rated lens for long outdoor life.
- Serviceable Design: Detachable driver allows fixture control and maintenance from the pole base.
- Mounting: Yoke mount included (slip fitter sold separately) for flexible pole or surface installations.
- Controls: 0-10V dimmable and wide voltage range (200-480V) for compatibility with common commercial electrical systems.
- Performance & Compliance: DLC 5.1 Premium qualified and IP66 wet-location rated for dependable outdoor operation.
APPLICATIONS:
- Sports fields and stadium lighting where high uniformity and output are required.
- Parking lots and municipal fields needing durable, long-life outdoor illumination.
- Arenas and golf ranges that benefit from selectable wattage and high lumen performance.
- Tip: Install at typical mount heights of 66-115 ft and consider available glare shields to minimize light spill and pollution.
SPECIFICATIONS:
- Product Code: SP-1200PS-50K-HV
- Topaz by Halco SKU: T74451
- Wattage: Selectable 800W, 1000W, 1200W
- Lumens: 128K-180K lm
- Voltage: 200-480V
- Color Temperature: 5000K
- CRI: 70
- Beam Angle: 20°
- Dimmable: Yes (0-10V)
- Average Life: 60,000 Hrs
- IP Rating: IP66 (Wet Location)
- Lens: IK08 impact rated lens
- Housing Material: Heavy-duty die-cast aluminum
- Mount Included: Yoke (slip fitter sold as accessory)
- Weight: 75.88
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium, UL Listed, RoHS
- Environment Rating: Suitable for wet locations
- Accessories: Shorting cap and 7-pin receptacle included; photocell, glare shields, slip fitter, and extension cords available separately.
