Description

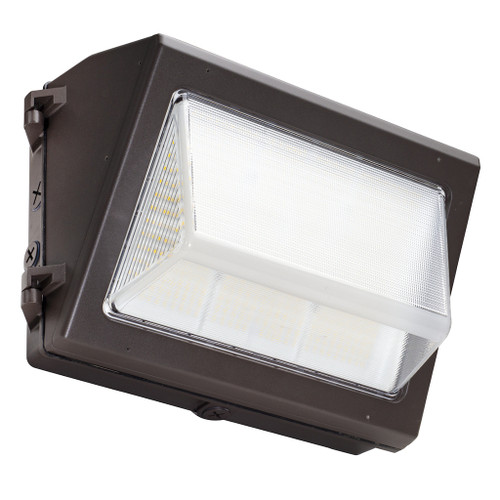

Commercial LED Wallpack | Daylight 5000K Outdoor Security Lighting With Dusk-To-Dawn Sensor And 0-10V Dimming
Engineered as an economical HID-to-LED upgrade, this Topaz LED wallpack delivers bright, uniform security illumination while cutting energy and maintenance needs for perimeter, loading dock, and walkway lighting. Its 120W integrated LED system produces high output with built-in controls to simplify installation and day-to-day operation.
KEY FEATURES:
- High Output: 120W LED delivering 15,000 lumens for strong perimeter and area lighting.
- Integrated Controls: Built-in dusk-to-dawn sensor for automatic on/off plus a 0-10V driver for dimming and building control integration.
- Durable Construction: Aluminum housing with UV-resistant polycarbonate lens and four 1/2" NPT threaded hubs for conduit access.
- Wet-Rated: IP65-rated for reliable outdoor performance in wet locations.
- Long Life & Warranty: 50,000 hour average life and a 5-year limited warranty for reduced maintenance costs.
APPLICATIONS:
- Ideal for building perimeters, loading docks, and parking lot aisles.
- Well suited for multifamily complexes, hotels, and commercial property exteriors.
- Perfect for security and safety illumination around warehouses and service areas.
- Usage Tip: Mount at recommended heights to maximize uniformity and leverage the integrated photocell for dusk-to-dawn automation.
SPECIFICATIONS:
- Product Code: WPE/120W/50K/BZ/PC
- Topaz by Halco SKU: T70550
- Wattage: 120W
- Lumens: 15,000 lm
- Color Temperature: 5000K (Daylight)
- CRI: 80
- Voltage: 120-277V
- Input Frequency: 50/60 Hz
- Average Life: 50,000 hours
- Power Factor: 0.9
- IP Rating: IP65
- Finish: Bronze
- Lens: Polycarbonate
- Mount Included: No
- Integrated Controls: Photocell Included, 0-10V Dimmable
- Weight: 8.28 (per item)
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety & Listings: DLC 5.1 Listed, UL Listed
- Location Rating: Suitable for Wet Locations
- RoHS: Yes
- Warranty: 5-year limited warranty
