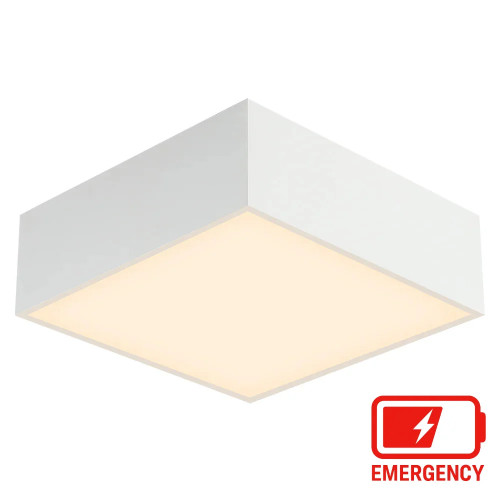

10" Square LED Flush Mount Fixture – CCT & Wattage Selectable with 90-Minute Emergency Operation
LBS Lighting SDW101520W347-345K-W-EC is a selectable LED surface-mount square downlight with onboard 10W/15W/20W wattage selection, tunable 3000K/4000K/5000K color temperature, and integrated emergency operation using a 4W emergency LED driver. This model delivers up to 2369 lumens in normal mode, provides uniform 108° illumination, and supplies compliant emergency lighting during power loss—all in a compact 9.85" x 9.85" x 2.32" white housing.
Product Specifications
- Product type: LED surface square downlight with emergency backup
- Wattage selectable (normal mode): 10W / 15W / 20W
- CCT selectable: 3000K / 4000K / 5000K
- Lumen output (normal mode): up to 2369 lm at 20W/4000K
- Emergency output: 4W emergency driver
- Emergency runtime: 90 minutes (minimum)
- Beam angle: approx. 108° wide distribution
- CRI: >80
- Input voltage: AC 120V/208V/277V/347V
- Dimming: 1–10V dimming (normal mode only)
- LED type: 2835
- Power factor: >0.90
- Driver efficiency: >88%
- Housing: aluminum & polycarbonate construction
- Finish: white
- Dimensions: 9.85" x 9.85" x 2.32"
- Location rating: damp location
- Operating temp: -4°F to 122°F
- Rated life: >50,000 hours
- Warranty: 5-year limited (fixture), emergency driver per manufacturer
- Emergency components: integrated 4W LED emergency driver and battery
- Certifications: meets standard egress and emergency lighting requirements
Benefits
- Integrated emergency driver ensures illumination during power loss without additional hardware.
- Selectable wattage and CCT allow quick field adjustment for normal-mode illumination.
- Wide-voltage 120–347V input supports commercial and institutional installations.
- Uniform 108° distribution reduces glare and shadowing in workspaces and corridors.
- Low-profile 2.32" housing fits tight ceilings and modern design standards.
- Long 50,000-hour life helps reduce operational and maintenance costs.
- Durable aluminum-polycarbonate build withstands high-traffic environments.
- Emergency mode enables code-compliant egress lighting in commercial settings.
Applications
- Hallways and interior corridors
- Offices and administrative areas
- Underground and covered parking structures
- Supermarkets and retail back rooms
- Stairwells and service corridors
- Schools, municipal buildings, and libraries
- Healthcare and commercial facilities requiring emergency egress lighting
