Description

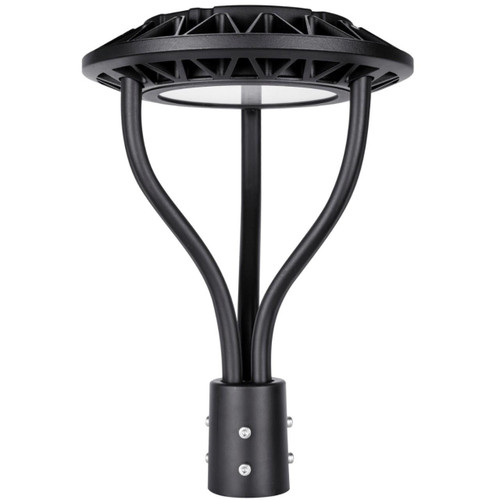

Commercial Modern Black Dark Sky Friendly LED Pole Top Lighting for Pathways & Streets - Dusk-to-Dawn Operation
Wattage Lumen Selectable | 21,000 Max Lumens | Color Selectable 3000K/4000K/5000K | 120-277V | Fits to 3 Inch Pole or Tenon Mounts
Contractor Essentials SS-PT01 is a modern full cutoff 150W / 120W / 100W / 80W / 70W selectable LED post top fixture designed for commercial, municipal, and site lighting applications. It features field-selectable wattage and CCT, an integrated dusk-to-dawn photocell, and universal mounting for standard 3" round posts or 2-3/8" tenon poles. When set to 3000K, the fixture supports Dark Sky–friendly lighting by reducing uplight and glare while maintaining uniform ground illumination.
Product Specifications
- Wattage: 150W / 120W / 100W / 80W / 70W selectable
- Lumen Output: Up to 21,000 lumens (varies by wattage)
- Efficacy: 140 lm/W
- Input Voltage: 120–277V
- CCT Options: 3000K / 4000K / 5000K selectable
- CRI: 80
- Optics: Full cutoff, 120° distribution
- Dimming: 0–10V
- Power Factor: >0.90
- Mounting: 3" round post or 2-3/8" tenon
- Photocell: Built in dusk-to-dawn photocell included
- Rating: UL listed, wet location
- Operating Temperature: -40°F to 113°F
- Housing: Die-cast aluminum with corrosion-resistant finish
- Warranty: 5-year limited
Benefits
- Dark Sky–friendly performance when set to 3000K
- Integrated photocell reduces energy use and maintenance
- One SKU covers multiple wattages and color temperatures
- Full cutoff optics minimize glare and light spill
- Compatible with standard post and tenon installations
Applications
- Parking lots and drive lanes
- Walkways and pedestrian areas
- Campuses and municipal sites
- Commercial building exteriors
- HOA and community lighting
Dark Sky FAQ
Is this post top light Dark Sky compliant?
When the fixture is set to 3000K, it supports Dark Sky–friendly lighting by reducing glare and uplight through its full cutoff optical design.
Does the fixture include a photocell?
Yes. This model includes a built-in dusk-to-dawn photocell for automatic on/off operation.
What type of pole does this fixture fit?
It mounts directly to standard 3" diameter round posts or 2-3/8" OD tenon poles, making it suitable for most commercial and municipal installations.
Can I change the wattage and color temperature in the field?
Yes. Both wattage and CCT are field selectable using internal switches inside the fixture.
What wattage options are available for this LED post top light?
This fixture offers selectable wattages of 70W, 80W, 100W, 120W, and 150W, allowing you to choose the right light output for pathways, streets, parking areas, or site lighting.
Downloads
Disclaimers
*This product is built to order typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship.
