Description

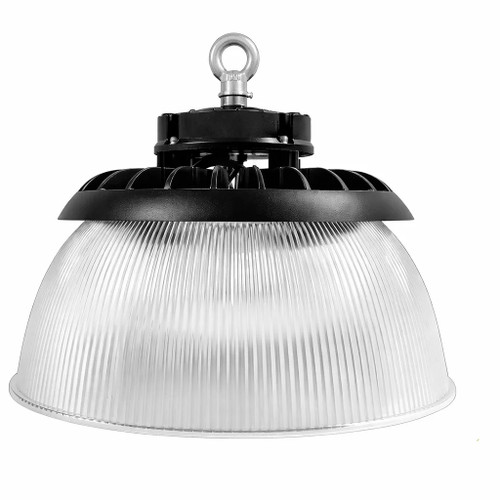

UFO 12 High Bay LED Fixture with Clear Prism Shade | 150W / 100W / 80W Selectable | 120–277V | 0–10V Dimmable | 3500K/4000K/5000K Selectable
Contractor Essentials UF012 is a commercial-grade UFO LED high bay fixture configured with a clear prism polycarbonate (PC) reflector shade to enhance vertical illumination and light diffusion while maintaining a wide 90° beam angle. This model features wattage selectability (150W / 100W / 80W), CCT selectability (3500K / 4000K / 5000K), high-efficiency performance up to 22,500 lumens, and a rugged die-cast aluminum housing designed for demanding indoor and wet-location environments.
The integrated PC prism reflector helps soften glare and distribute light more evenly across work surfaces, making this configuration ideal for warehouses, gyms, manufacturing areas, and facilities requiring balanced illumination without harsh cutoff.
Choose the right configuration for your space:
- For open areas requiring a wide beam, view the 150W UFO LED High Bay Light (No Reflector).
- For glare control and focused downward light, this model includes an aluminum reflector & High Bay.
- For high-impact environments like gyms or facilities with ball activity, view the 150W UFO LED High Bay Light with Protective Wire Guard
- For balanced light diffusion with reduced glare, view the 150W UFO LED High Bay Light with Clear Prismatic PC Reflector
Product Specifications
- Wattage: 150W / 100W / 80W selectable
- Lumen Output: 22,500 / 15,000 / 12,000 lumens
- Efficacy: 150 LPW
- Color Temperature: 3500K / 4000K / 5000K selectable
- CRI: 70 / 80
- Beam Angle: 90°
- Input Voltage: AC 120–277V
- Dimming: 0–10V
- Power Factor: >0.9
- Driver Efficiency: >90%
- Housing Material: Die-cast aluminum
- Reflector: Clear prism polycarbonate (PC) reflector shade (included)
- Mounting: Ring standard; hook or yoke sold separately
- Operating Temperature: -40°F to 113°F
- Protection Rating: Wet location
- Rated Life: >50,000 hours
- Certification: DLC 5.1 Premium, UL listed
- Warranty: 5-year limited
Benefits
- Clear prism PC reflector improves light diffusion and visual comfort
- Wattage and CCT selectable for flexible field configuration
- High lumen output with excellent energy efficiency
- Durable polycarbonate reflector resists impact and discoloration
- Quick-disconnect design simplifies maintenance
- Compatible with optional PIR, microwave, and Bluetooth motion sensors
Applications
- Warehouses and distribution centers
- Gyms and athletic facilities
- Manufacturing plants
- Retail back-of-house areas
- Commercial and industrial spaces requiring balanced light distribution
Downloads
150W UFO LED High Bay Light with Clear Prismatic PC Reflector – FAQ
What is a 150W UFO LED high bay light with a clear prismatic PC reflector?
A 150W UFO LED high bay light with a clear prismatic polycarbonate (PC) reflector is a high-output commercial lighting fixture designed to diffuse light evenly while reducing glare. The prismatic PC reflector helps soften brightness and improve visual comfort while maintaining a wide beam pattern.
What does a clear prismatic PC reflector do?
A clear prismatic PC reflector spreads light more evenly by refracting it through a prismatic surface. This reduces harsh glare and hotspots while maintaining broad illumination across the space.
How is a PC reflector different from an aluminum reflector?
A PC prismatic reflector diffuses light for softer, more uniform illumination, while an aluminum reflector focuses light downward for tighter beam control. PC reflectors are often preferred where balanced light distribution and glare reduction are needed.
Is the clear prismatic PC reflector included with this fixture?
Yes. This 150W UFO LED high bay light is sold with the clear prismatic polycarbonate reflector shade included and factory-matched to the fixture.
Does the PC reflector reduce lumen output?
No. The reflector does not reduce the fixture’s lumen output. It redistributes the light to improve visual comfort and coverage without sacrificing efficiency.
Where should a 150W UFO high bay with PC reflector be used?
This configuration is ideal for warehouses, gyms, manufacturing facilities, retail stock rooms, and commercial spaces where even light distribution and reduced glare are preferred.
Is the polycarbonate reflector durable?
Yes. Polycarbonate is impact-resistant and resistant to cracking or yellowing, making it suitable for long-term use in commercial and industrial environments.
Is this fixture dimmable?
Yes. The 150W UFO LED high bay supports 0–10V dimming for lighting control and energy savings.
