Description

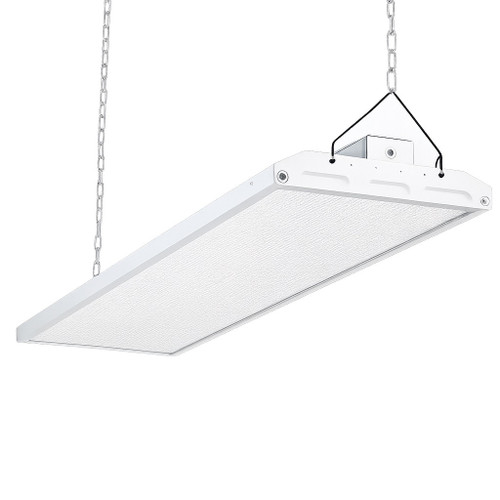

2ft High Bay LED with Frost Diffuser | Wattage Selectable | 120-277V | Dimmable | CCT Selectable Neutral/Cool White/Daylight White | Hanging Chain Mount
The LHB07-L3-220/160/110W is a high-performance LED linear high bay designed for warehouses, industrial facilities, and commercial spaces requiring powerful, flexible lighting. This model offers three selectable wattages—220W, 160W, and 110W—along with three color temperature options: 3500K (neutral white), 4000K (cool white), and 5000K (daylight). Delivering up to 140 LPW with a 90° distribution, it features a rugged rolled-steel housing, 0–10V dimming, sensor-ready controls, and long-life LED performance optimized with an LED Tj <85°C. Hanging chain and the L-bracket included for the audio jack microwave sensor (sensor sold separately), while pendant and surface-mount kits are sold separately.
Product Specifications
- Wattage selectable: 220W / 160W / 110W
- Lumens: 30,800, 22,400, 15,400
- High efficacy: up to 140 lumens per watt
- Color temperature options: 3500K, 4000K, 5000K
- CRI options: 70 or 80
- Input voltage: AC120–277V
- Beam distribution: 90°
- Power factor: ≥0.9
- Driver efficiency: 90%
- 0–10V dimming and 12V auxiliary dimming
- LED junction temperature: <85°C
- Rated lifespan: 50,000+ hours
- Operating temperature: -40°F to 113°F
- Damp location rated
- Housing: galvanized rolled iron plate
- Controls-ready: plug-and-play bi-level microwave sensor (sensor sold separately)
- Emergency option available: 20W emergency driver
- Dimensions: 25.39" L × 8.70" W × 16.14" H
Benefits
- Field-adjustable wattage and CCT for maximum installation versatility
- High-output illumination designed for tall ceilings and wide-area coverage
- Durable thermal design ensures long-life reliability
- Compatible with energy monitoring and advanced control systems
- Meets DLC networked lighting control technical requirements
- Multiple mounting methods for easy installation
Applications
- Warehouses and logistics centers
- Industrial and manufacturing buildings
- Gyms and fitness centers
- Large retail or big-box environments
- Storage and commercial facilities
