Description
Selectable Wattage - 320W/240W/200W | 40W Battery Back Up | Occupancy Sensor | 0–10V Dimmable | 4000K/5000K Selectable

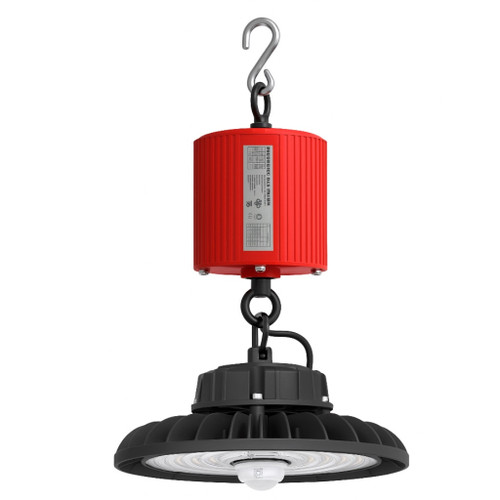

This is a high-performance UFO LED high bay light built for industrial and commercial facilities requiring motion control, emergency operation, and multi-voltage flexibility. With selectable wattage (320W / 240W / 200W) and dual color temperature (4000K / 5000K), it delivers up to 54,400 lumens at an impressive 170 lm/W efficacy. Designed for 277V, 347V, or 480V systems, this model includes an integrated motion sensor port and supports the XEBB18-40WACHV 40W, 90-minute emergency battery backup for uninterrupted lighting during power loss. Rugged, efficient, and versatile — this fixture is the ideal choice for warehouses, factories, and gymnasiums.
Product Specifications
- Wattage Selectable: 320W / 240W / 200W
- Lumen Output: up to 54,400 lumens
- Efficacy: up to 170 lm/W
- Input Voltage: 277V / 347V / 480V AC (50/60Hz)
- CCT Selectable: 4000K (Cool White) or 5000K (Daylight)
- CRI: >80
- Dimming: 0–10V dimmable (100%–off)
- Motion Sensor: Plug-and-play 0–10V microwave sensor port
- Emergency Backup: – 40W / 90 minutes @ 277–480V
- Beam Options: Narrow / Medium (standard) / Wide
- Housing: Die-cast aluminum with black finish (white optional)
- Lens: Polycarbonate refractor or drop-lens available
- Operating Temperature: –40°F (–40°C) to 122°F (50°C)
- Mounting: G-hook standard; O-hook, U-bracket, or ¾″ NPS pendant optional
- Finish: Black
- Certifications: cULus Listed, DLC Qualified, IP65 Rated
- Warranty: 5-year limited manufacturer warranty
Benefits
- Combines occupancy sensor and emergency lighting in one high-bay fixture
- Selectable wattage and CCT minimize SKUs while offering flexibility
- 40W, 90-minute emergency battery backup ensures egress lighting compliance
- Operates across 277–480V input range for U.S. and Canadian installations
- 0–10V dimming for precise control and energy savings
- Up to 170 lm/W efficiency for lower operating costs
- Durable IP65 housing built for demanding industrial environments
- Ready for motion, daylight, or smart networking controls
Applications
- Warehouses and logistics centers
- Manufacturing and assembly plants
- Gymnasiums and sports complexes
- Retail warehouses and big-box stores
- Industrial facilities and maintenance bays
- Emergency lighting zones and egress pathways
