Description
Commercial Parking Garage Ceiling Light Fixture| 40W/60W/90W Selectable | 120-277V | 3000K, 4000K, 5000K Selectable

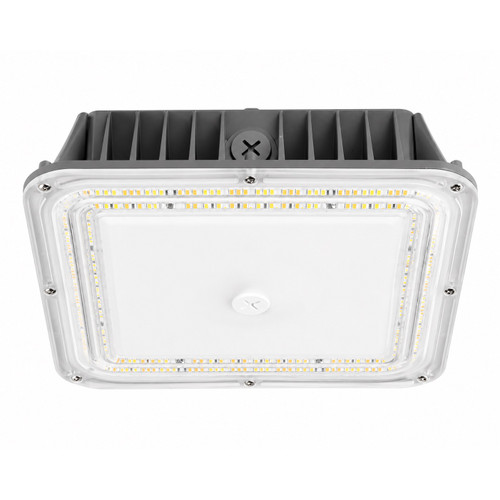

Deco DCPS-GEN2-MW90 is a square bronze LED canopy light designed for parking garages, car ports, driveways, underpasses, walkways, courtyards, balconies, and covered commercial outdoor spaces. This Generation II canopy fixture features selectable 40W, 60W, and 90W operation, selectable 3000K, 4000K, and 5000K color temperature, 0-10V dimming, greater than 130 lumens per watt efficacy, 90 degree beam angle, die-cast aluminum construction, IP65 protection, IK08 housing protection, and a low-profile square body for commercial ceiling-mounted applications.
Product Specifications
- Brand: Deco Lighting
- Model Number: DCPS-GEN2-MW90
- Series: DCP Canopy
- Fixture Type: Square LED canopy light
- Finish: Bronze
- Wattage: 40W/60W/90W selectable
- Color Temperature: 3000K/4000K/5000K selectable
- CRI: Greater than 80
- Beam Angle: 90 degrees
- Efficacy: Greater than 130 lumens per watt
- Input Voltage: AC 120-277V
- Dimming: 0-10V dimming
- Main Body: Die-cast aluminum
- Diffuser: Clear/opal anti-UV prismatic glass
- Lens Transmission: Greater than 90%
- LED Chip: Lumileds 3030 listed as regular
- Driver: KERHAM listed as regular; Sosen and Meanwell listed as driver options
- Fixings: Tamper proof fixings for increased vandal resistance
- Finish Protection: Anti-UV electrostatic powder spraying
- IP Rating: IP65 water and rust proof protection
- Impact Rating: IK08 housing protection
- Available Options: Emergency function and sensing function
- Certifications: UL certified, DLC Listed Premium
- Lifetime: L80 - 100,000 hours
- Dimensions: 265 mm x 265 mm x 70 mm shown for square model
- Warranty: 5 year warranty included, 10 year optional
Benefits
- Square canopy design is ideal for parking garage, breezeway, underpass, and covered exterior ceiling applications.
- Selectable wattage lets installers choose 40W, 60W, or 90W based on light level requirements.
- Selectable CCT provides 3000K, 4000K, and 5000K options for warmer, neutral, or daylight-style lighting.
- Low-profile canopy construction provides a clean commercial look in parking garages and covered outdoor areas.
- 0-10V dimming supports compatible commercial lighting control systems.
- IP65 protection helps protect the fixture against water and rust in demanding environments.
- IK08 housing protection and tamper proof fixings help improve durability in public spaces.
- Anti-UV prismatic glass diffuser supports efficient light transmission and vandal resistance.
- Die-cast aluminum body helps dissipate heat for long-term LED performance.
Applications
- Parking garages
- Car ports
- Driveways
- Underpasses
- Covered walkways
- Courtyards
- Balconies
- Parking lots
- Commercial canopy lighting
- Covered building exterior areas
Frequently Asked Questions
Is the Deco DCPS-GEN2-MW90 best for commercial parking garages?
Yes. The Deco DCPS-GEN2-MW90 is a strong fit for commercial parking garages because it combines a low-profile square canopy design, selectable wattage, selectable CCT, 0-10V dimming, IP65 protection, IK08 impact-rated housing protection, and tamper proof fixings for demanding public and commercial spaces.
Can this square canopy light be surface mounted?
Yes. This fixture is designed for canopy and ceiling-mounted applications such as parking garages, car ports, covered walkways, driveways, and underpasses. It is commonly used as a surface-mounted LED canopy light in covered commercial locations.
Can this fixture be conduit mounted?
The spec sheet shows wiring access and canopy installation details. Conduit mounting should be completed by a qualified electrician according to the project layout, local electrical code, and manufacturer installation instructions.
What wattage settings are available?
The Deco DCPS-GEN2-MW90 is wattage selectable and can be set to 40W, 60W, or 90W.
How many lumens does this fixture produce?
The manufacturer lists the fixture at greater than 130 lumens per watt. Actual lumen output will depend on the selected wattage setting.
What color temperatures are available?
This fixture is CCT selectable and can be set to 3000K, 4000K, or 5000K. This allows the installer to choose warmer, neutral, or daylight-style lighting based on the parking garage or covered area.
Is this canopy light dimmable?
Yes. The Deco DCPS-GEN2-MW90 includes 0-10V dimming for use with compatible commercial dimming controls.
What does IK08 housing protection mean?
IK08 housing protection means the fixture housing is impact rated for improved durability. This is useful in commercial parking garages, walkways, underpasses, and other public areas where fixtures may be exposed to bumps, contact, or abuse.
Is this fixture vandal resistant?
The fixture includes IK08 housing protection and tamper proof fixings for increased vandal resistance. It should be described as vandal resistant, not vandal proof.
Is this canopy light rated for outdoor or damp commercial areas?
Yes. The fixture has an IP65 rating for water and rust proof protection, making it suitable for demanding covered outdoor and commercial canopy applications when installed correctly.
Does this fixture have emergency backup available?
Yes. Emergency function is listed as an available option for this canopy series. Order the emergency version when emergency lighting backup is required for the project.
Does this fixture have a motion sensor option?
Yes. Sensing function is listed as an available option for this canopy series. This can help support occupancy-based lighting control in parking garages and covered commercial spaces.
Where is this square LED canopy light commonly used?
This fixture is commonly used in parking garages, car ports, driveways, underpasses, covered walkways, courtyards, balconies, parking lots, and commercial canopy lighting applications.
Downloads
