50 Watt 0-10V Constant Current LED Controller
Powerful and Versatile LED Driver for All Climates

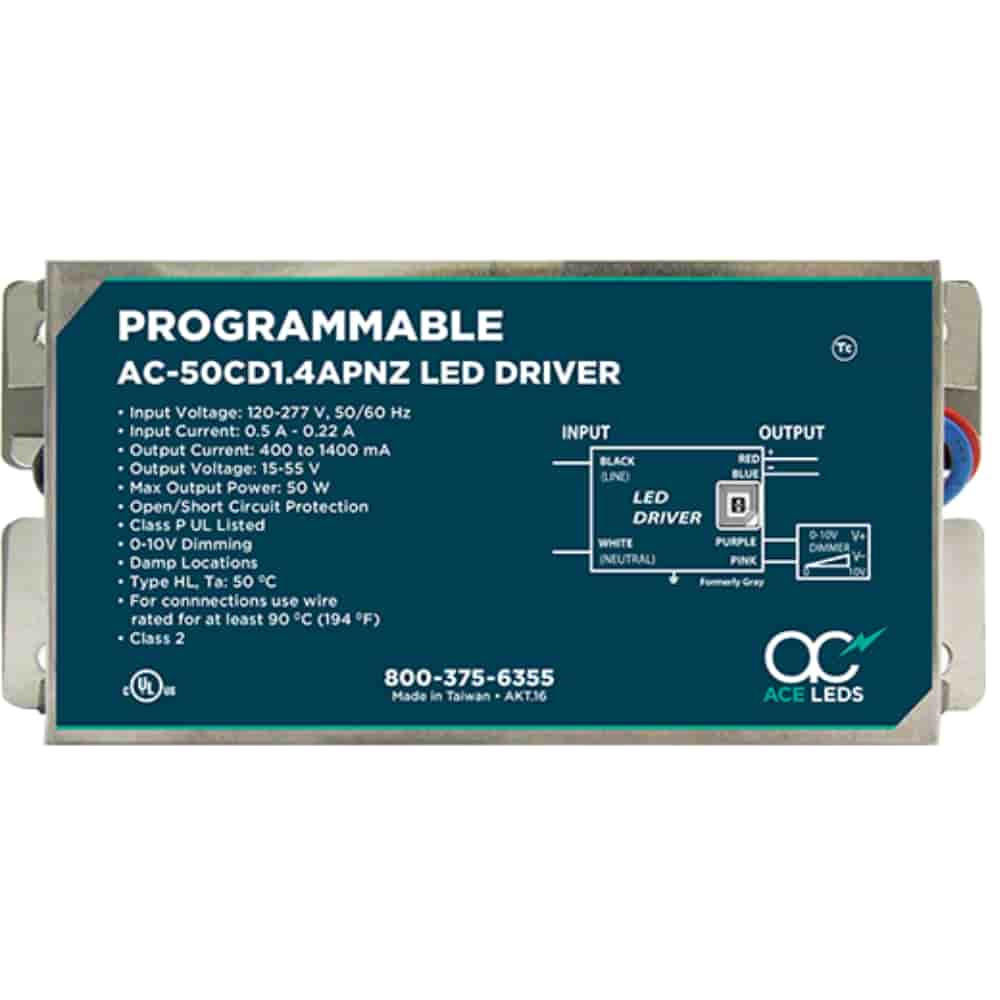

The Ace AC-50CD1.4APNZ is a high-performance constant current LED driver designed to excel in diverse lighting applications, even under extreme temperatures. This feature-packed driver boasts exceptional power output, wide voltage compatibility, extensive dimming range, and robust safety features, making it ideal for professionals and design enthusiasts seeking a reliable solution for various climates.
Key Features:
- Powerful Performance: Delivers a maximum output power of 50W, providing ample power for driving a wide range of LED projects.
- Wide Input & Output Voltage: Accepts a broad range of input voltages (120-277 VAC) and offers adjustable output voltage from 15 to 55 VDC, ensuring compatibility with various LED configurations.
- Unparalleled Dimming Control: Enables smooth dimming control from 1% to 100%, providing unparalleled control over lighting ambiance.
- Highly Efficient Operation: Maintains up to 85% efficiency, minimizing energy consumption and reducing electricity costs.
- Durable Construction: Class P and Class 2 certified, suitable for various indoor environments.
- Multi-Protocol Dimming Compatibility: Works with popular dimming protocols like 0-10V, offering wider integration with various control systems.
- Wide Temperature Range: Operates in extreme temperatures ranging from -40°C to 90°C, making it ideal for various climates.
- Safety Features: Includes Class A sound rating, overload protection, open/short circuit protection, surge protection (2 KV), and input/output isolation for safe and reliable operation.
- Long Lifespan: Offers a lifespan of 50,000 hours at 75°C case temperature, ensuring long-lasting performance.
Ace AC-50CD1.4APNZ Constant Current LED Driver Specifications
Electrical Specifications:
- Maximum Output Power: 50W
- Maximum Input Power: 60W
- Input Voltage: 120-277 VAC (±10%)
Input Current:
- 0.5 A @ 120 V
- 0.22 A @ 277 V
- Minimum Power Factor (PF): > 0.90 (at full load)
- Maximum Total Harmonic Distortion (THD): < 20% (at full load)
- Output Voltage: 15 to 55 VDC (Adjustable)
- Output Current: 400 mA to 1400 mA
- Efficiency: Up to 85%
- IP Rating: 64 (Dust-tight and protected against water spray from any direction)
Dimming:
- Protocol: 0-10V
- Dimming Range: 1-100%
Physical Specifications:
- Dimensions (L x W x H): 5.23" x 2.48" x 1.18"
Lead Lengths:
- Black: 5.9"
- Blue: 5.9"
- Purple: 7.1"
- White: 5.9"
- Red: 5.9"
- Pink: 7.1"
Safety & Ratings:
- Class A sound rating
- Overload Protection
- Open/Short Circuit Protection
- Input/Output Isolation
- Class P Listed
- Class 2 Certified
- LED driver has a life expectancy of 50,000 hours at Tcase ≤75°C
- LED driver has a life expectancy of 100,000 hours at Tcase ≤65°C
- Warranty: 5 years (based on max case temp of ≤75°C); 3 years (based on max case temp of 90°C)
- FCC Title 47 CFR Part 15
- Surge Protection (2 KV)
Environmental:
- Operating Temperature Range: -40°C to 90°C
Installation:
- Max Remote Installation Distance: 18 ft
- LED driver cases should be grounded
- LED drivers shall be installed inside electrical enclosures
- Wire Requirements: 18 AWG 600V/105C tinned stranded copper
