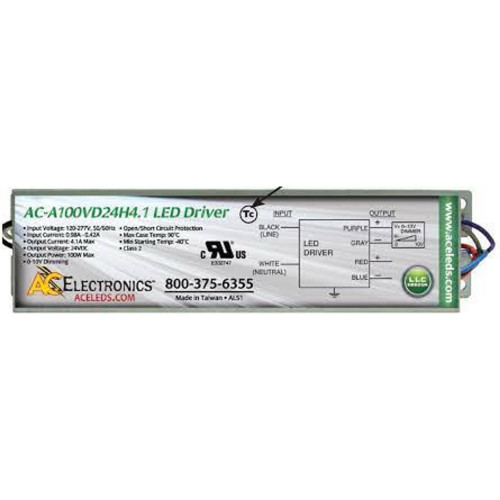

Ace AC-A100VD24H4.1 Constant Voltage LED Driver

SKU:
AC-A100VD24H4.1
Typically ships in 3-5 business days* View full description
$47.52
Customer Reviews

Description

100 Watt 0-10V Programmable LED Driver

Unleash Precision Control for Large-Scale 24V LED Projects

The Ace AC-A100VD24H4.1 is a high-performance, 0-10V dimmable constant current LED driver designed to tackle even the most demanding 24V LED lighting applications. This feature-rich driver offers exceptional power delivery, superior efficiency, and robust safety features, making it ideal for professionals and large-scale project managers seeking a versatile solution for various low-voltage LED installations.

Key Features:

  • Unmatched Power & Control: Delivers a maximum output power of 100W and features 0-10V dimming (15-100%) for precise control over your lighting ambiance, perfect for large-scale projects.
  • Highly Efficient Performance: Maintains up to 90% efficiency, minimizing energy consumption and reducing electricity costs.
  • Extensive Voltage Compatibility: Accepts a universal range of input voltages (120-277 VAC) for flexible use in various electrical systems.
  • Wide Range Current Adjustment: Offers adjustable output current from 410mA to 4100mA, providing fine-tuned control for diverse LED project requirements.
  • Durable & Safety Certified: UL Recognized, cUL Recognized, UL 1310 Class 2 certified, and UL Outdoor Type 1 rated for safe and reliable operation in various environments.
  • Silent Operation: Class A sound rating ensures quiet operation.
  • Suitable for Outdoor Use: IP65 rated for protection against dust and water jets from any direction.
  • Long Lifespan: Offers a lifespan of 50,000 hours at 75°C case temperature, ensuring long-lasting performance.
  • Updated Wiring for Safety: Features a pink wire for the negative (-) dimming connection in accordance with the 2020 NEC and NEMA standards.
  • Long Remote Installation: Supports remote mounting with various wire gauges for flexibility (maximum distance depends on wire gauge).

Ace AC-A100VD24H4.1 Constant Current LED Driver Specifications

Electrical Specifications:

  • Output Power: 100W (Maximum)
  • Input Power: 111W (Typical)
  • Input Voltage: 120-277 VAC (±10%)

Input Current:

  • 0.98A @ 120V
  • 0.42A @ 277V
  • Minimum Power Factor (PF): > 0.90 (at full load)
  • Maximum Total Harmonic Distortion (THD): < 20% (at full load)
  • Output Voltage: 24 VDC ± 5% (Constant)
  • Output Current: 410mA to 4100mA (Adjustable)
  • Dimming Protocol: 0-10V Dimming
  • Dimming Range: 15% to 100%
  • Efficiency: Up to 90%

Physical Specifications:

  • Dimensions (L x W x H): 9.50" x 2.40" x 1.46"

Lead Lengths:

  • White: 5.9"
  • Black: 5.9"
  • Red: 5.9"
  • Blue: 5.9"
  • Pink: 7.1" (Negative dimming wire)

Mounting:

  • Mounting Length: 8.9"
  • Mounting Hole Distance: 1.5"
  • Mounting Hole Diameter: 0.20"
  • Weight: 1.98 lbs.
  • Case Quantity: 20 pcs

Environmental:

  • Operating Temperature Range: -40°C to 90°C (ambient)
  • IP Rating: 65 (Dust-tight and protected against water jets from any direction)

Safety & Certifications:

Safety Certifications:

  • UL Recognized
  • cUL Recognized
  • UL 1310 Class 2 Certified
  • UL Outdoor Type 1 Rated
  • Sound Rating: Class A (Quiet Operation)
  • Warranty: 5 years (based on max case temp of ≤75°C); 3 years (based on max case temp of ≤90°C)
  • Input/Output Isolation
  • FCC Title 47 CFR Part 15
  • Surge Protection (3 KV)
  • Open/Short Circuit Protection

LED driver lifespan:

  • 50,000 hours at Tcase ≤75°C
  • 100,000 hours at Tcase ≤65°C

Remote Mounting Wire Gauge Table (Maximum Distance):

  • 10AWG: 47m (154.2')
  • 12AWG: 30m (98.4')
  • 14AWG: 19m (62.3')
  • 16AWG: 14m (45.9')
  • 18AWG: 8m (26.2')

Installation:

  • LED drivers shall be installed inside electrical enclosures.
  • Max Remote installation distance is based on wire gauge (see table above).
  • Wire Requirements: Use the appropriate wire gauge based on the desired remote mounting distance (see table). 18 AWG 600V/105C tinned strand copper lead-wires are required for driver connections.
  • LED driver cases should be grounded.
