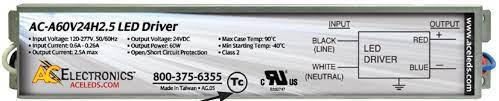

Ace AC-A60V24H2.5 Constant Voltage LED Driver

SKU:
AC-A60V24H2.5
Typically ships in 3-5 business days* View full description
$37.28
Customer Reviews

Description

60 Watt 120-277V Programmable LED Driver

Power and Control for Your 24V LED Projects

The Ace AC-A60V24H2.5 is a high-performance constant current LED driver designed to provide exceptional power and control for a wide range of 24V LED lighting applications. This versatile driver boasts impressive output power, smooth dimming capability, and robust safety features, making it ideal for professionals and design enthusiasts seeking a reliable solution for various lighting projects.

Key Features:

  • Powerful Performance: Delivers a maximum output power of 60W, suitable for driving a broad spectrum of 24V LED configurations.
  • Wide Voltage Compatibility: Accepts a universal range of input voltages (120-277 VAC) for flexible use in various electrical systems.
  • Precise Dimming Control: Enables smooth dimming control (dimming method unspecified - check product manual for details), offering exceptional adjustment of lighting ambiance.
  • Highly Efficient Operation: Maintains up to 87% efficiency, minimizing energy consumption and reducing electricity costs.
  • Durable & Safety Certified: UL Recognized, cUL Recognized, UL 1310 Class 2 certified, and UL Outdoor Type 1 rated for safe and reliable operation in various environments.
  • Silent Operation: Class A sound rating ensures quiet operation.
  • Suitable for Outdoor Use: IP65 rated for protection against dust and water jets from any direction.
  • Long Lifespan: Offers a lifespan of 50,000 hours at 75°C case temperature, ensuring long-lasting performance.

Ace AC-A60V24H2.5 Constant Current LED Driver Specifications

Electrical Specifications:

  • Output Power: 60W
  • Input Voltage: 120-277 VAC (±10%)

Input Current:

  • 0.6 A @ 120 V
  • 0.26 A @ 277 V
  • Minimum Power Factor (PF): > 0.9 (at full load)
  • Maximum Total Harmonic Distortion (THD): < 20% (at full load)
  • Output Voltage: 24 VDC ± 5% (Constant)
  • Output Current: 0.25 to 2.5A (Adjustable)
  • Efficiency: Up to 87%
  • Dimming: Please refer to product manual for details (method not specified in provided information)

Physical Specifications:

  • Dimensions (L x W x H): 9.50" x 1.70" x 1.14"

Wiring Lead Lengths:

  • White: 5.9"
  • Black: 5.9"
  • Red: 5.9"
  • Blue: 5.9"

Mounting:

  • Mounting Length: 8.97"
  • Mounting Hole Distance: 1.2"
  • Mounting Hole Diameter: 0.21"
  • Weight: 1.32 lbs.
  • Case Quantity: 30 pcs

Environmental:

  • Operating Temperature Range: -40°C to 90°C (ambient)
  • IP Rating: 65 (Dust-tight and protected against water jets from any direction)

Safety & Certifications:

Safety Certifications:

  • UL Recognized
  • cUL Recognized
  • UL 1310 Class 2 Certified
  • UL Outdoor Type 1 Rated
  • Sound Rating: Class A (Quiet Operation)
  • Warranty: 5 years (based on max case temp of ≤75°C); 3 years (based on max case temp of 90°C)
  • Input/Output Isolation
  • FCC Title 47 CFR Part 15
  • Surge Protection (3 KV)
  • Open/Short Circuit Protection

LED driver lifespan:

  • 50,000 hours at Tcase ≤75°C
  • 100,000 hours at Tcase ≤65°C

Installation:

  • LED drivers shall be installed inside electrical enclosures
  • Max Remote installation distance is 18 ft
  • Wire Requirements: 18 AWG 600V/105C tinned strand copper lead-wires
  • LED driver cases should be grounded

Downloads


Disclaimers

*This product is built to order typically ships in 3 to 5 business days. Larger quantities may take longer than stated lead-time.  All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship.


Extra Information

Brand:
ACE LEDS
Catalog No:
AC-A60V24H2.5
Driver Type:
Constant Voltage
Ballast Type:
LED Driver
Light Source:
LED
Dimmable:
No
Max. Power:
60 Watt
Input Voltage:
120-277V
Output Voltage:
24V ±5%
Input Frequency:
50/60 Hz
Warranty:
5 Year
Length (in.):
9.50
Width (in.):
1.70
Height (in.):
1.14
Mounting (in.):
8.97
Price Shown:
Per Driver
