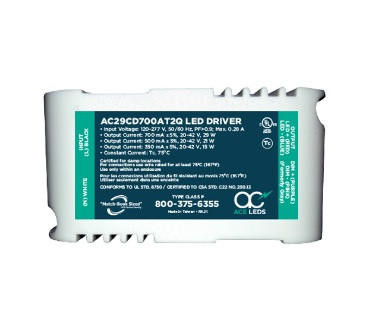

29 Watt 0-10V Dimming Match-Book Sized LED Controller
Ace AC29CD700AT2Q: High-Power, Dimmable LED Driver for Flexible Lighting Designs
The Ace AC29CD700AT2Q is a powerful and versatile constant current LED driver, designed to deliver exceptional control and performance for a wide range of lighting applications. This feature-rich driver offers selectable power output, wide dimming range, high efficiency, and multiple safety features, making it an ideal choice for professionals and design enthusiasts alike.
Key Features:
- Selectable High Power: Delivers selectable output power of 29W, 21W, or 15W to accommodate various LED project requirements.
- Wide Input & Output Voltage: Accepts a wide range of input voltages (120-277 VAC) and offers adjustable output voltage from 20-42 VDC, ensuring compatibility with diverse LED setups.
- Smooth 0-100% Dimming: Enables seamless dimming control from 5% to 100%, ideal for creating the perfect atmosphere in any space.
- Highly Efficient: Maintains up to 88% efficiency, minimizing energy consumption and reducing electricity costs.
- Durable Construction: Class P listed, making it suitable for various indoor environments.
- Multi-Protocol Dimming Compatibility: Works with popular dimming protocols like 0-10V, offering wider integration with various control systems.
- Safety Features: Includes Class A sound rating, open/short circuit protection, surge protection (2 KV), and input/output isolation for safe and reliable operation.
- Long Lifespan: Offers a lifespan of 50,000 hours at 75°C case temperature, ensuring long-lasting performance.
Ace AC29CD700AT2Q Constant Current LED Driver Specifications
Electrical Specifications:
Selectable Output Power:
- 29 W (at 20-42V DC, 700mA ±5%)
- 21 W (at 20-42V DC, 500mA ±5%)
- 15 W (at 20-42V DC, 350mA ±5%)
- Input Voltage: 120-277 VAC (±10%)
Input Current:
- 0.28 A @ 120 V (at 29W output)
- 0.20 A @ 120 V (at 21W output)
- 0.14 A @ 120 V (at 15W output)
- 0.12 A @ 277 V (at 29W output)
- 0.09 A @ 277 V (at 21W output)
- 0.07 A @ 277 V (at 15W output)
- Minimum Power Factor (PF): > 0.9 (at full load)
- Maximum Total Harmonic Distortion (THD): < 20% (at full load)
- Output Voltage: 20-42 VDC (Adjustable)
- Efficiency: Up to 88%
Dimming:
- Protocol: 0-10V
- Dimming Range: 5-100%
Physical Specifications:
- Dimensions (L x W x H): Refer to product manual for exact dimensions
- Lead Lengths: Black 12", Blue & Purple 6", White 12", Red & Pink 6"
Safety & Ratings:
- Class P Listed
- Class A Sound Rating
- No PCBs
- Open/Short Circuit Protection
- Input/Output Isolation
- Surge Protection (2 KV)
- LED driver has a life expectancy of 50,000 hours at Tcase ≤75°C
- Warranty: 5 years (based on max case temp of ≤75°C)
Installation:
- Max Remote Installation Distance: 33 ft
- Requires enclosure (consult local codes)
- Wire Requirements: 22 AWG 600V/105°C tinned stranded copper
