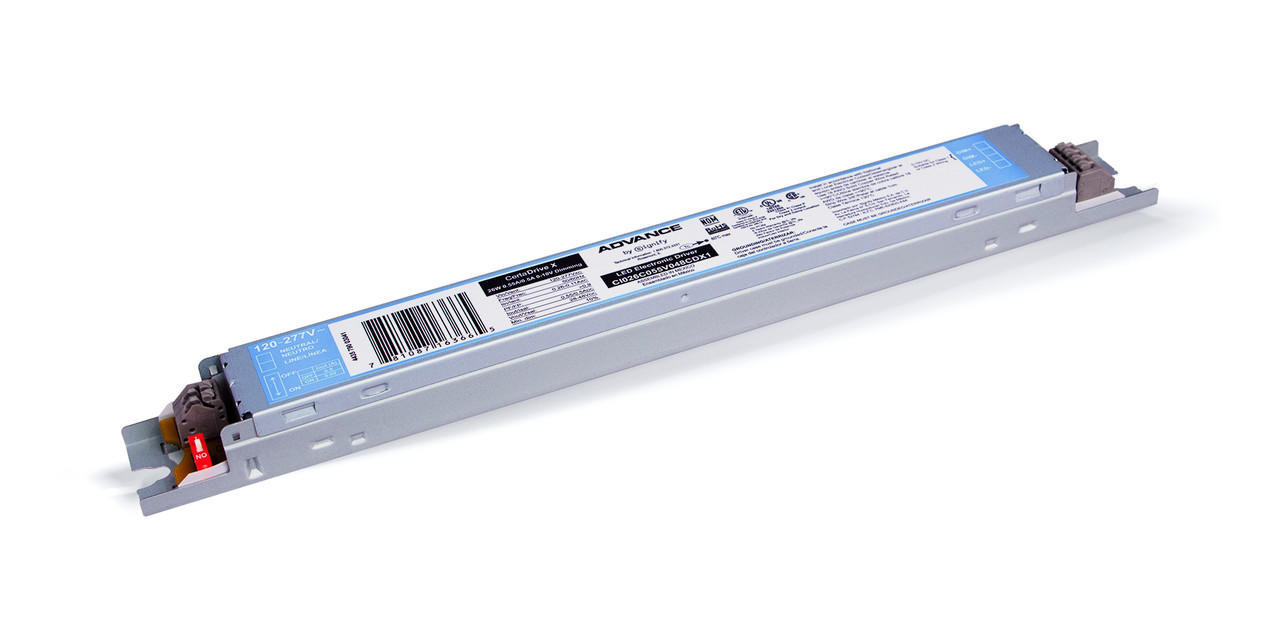

Advance CI025C051V048CDX1M 25W LED Driver

SKU:
PL-1791413
Minimum Order Quantity:
18 units
To help ensure safe arrival this product and to give you the lowest possible price, this item is only sold in case quantities.  Price shown is per driver. View full description
$14.34
Customer Reviews
Pack
18

Description

Replacement 25W CertaDrive X LED Driver | 485/515 mA | 120-277V

Advance CertaDrive X LED drivers are designed to meet basic lighting needs. These drivers are offered with specific voltage-current settings and are, thus, optimized with specifications that are appropriately suited for the application, making LED conversion affordable.

Features

  • 50,000+ hour lifetime1
  • Excellent thermal performance
  • High power factor & low THD2

Benefits

  • Enables long life luminaire designs
  • Allows operability in indoor (low-bay) ambient conditions
  • Suitable for commercial indoor applications

Application

  • Indoor linear troffers, pendants
  • Office areas
  • Retail centers
  • Educational facilities

Disclaimers

*This product typically ships in 7 to 10 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will be longer than 10 business days to ship. Due to the speciality nature of this product, all sales are final.

Extra Information

Brand:
Advance by Signify
UPC:
929001791413
Order Number:
CI025C051V048CDX1M
Input Voltage (Vac):
120-277
Output Power (W):
25 Watt
Output Voltage (V):
28-48 Class 2 Output
Output Current (A):
0.485/ 0.515A
Efficiency@ Max Load and 75°C Case:
85 / 87
Max Case Temp. (°C):
Tc-life: 70°C / Tc-UL: 80°C
Input Current (A):
0.24 / 0.11
Max. Input Power (W):
29.1
THD @ Max Load (%):
Power Factor @ Max Load:
>0.90
Surge Protection (Ring Wave, KV):
2.5
Envir. Protect. Rating:
UL damp & dry
Dimming:
0-10V Analog
Dimming Range:
10% ~ 100%
Driver Type:
Constant Current
Pack:
18
