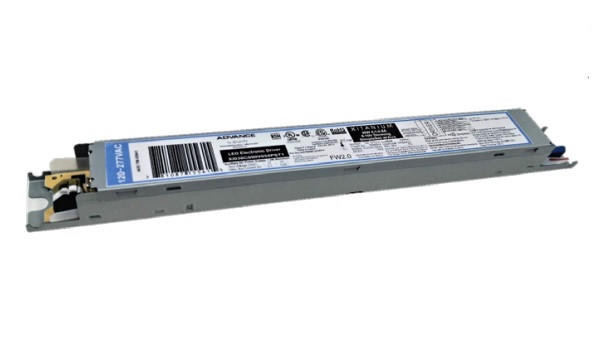

Advance XI020C056V054BST3M 20W LED Driver

Advance by Signify
SKU:
PL-2703813
Philips Advance XI020C056V054BST3M
Sold by the Case of:
18 units
To help ensure safe arrival this product and to give you the lowest possible price, this item is only sold in case quantities.  Price shown is per driver. View full description
$26.82
Customer Reviews
Pack
18

Description

Replacement 20W Xitanium LED Driver | 0-10V Dimming | 120-277V

The Advance Xitanium range of linear LED drivers is designed to provide OEMs with ultimate flexibility. These models are compatible with standard 0-10V dimming systems to deliver reliably smooth dimming performance down to a minimum of 1%. Enabled with SimpleSet technology, these drivers offer the needed flexibility and performance for the application with precise tuning of drive currents, selectable dimming curves and adjustable minimum dimming levels. With wide operating windows, slim profile and simple current adjustability, the drivers make it easy for luminaire manufacturers to design linear fixtures with desired lumen levels to suit the application.

Features

  • 50,000+ hour lifetime1
  • SimpleSet programmable
  • Large operating window
  • 1% minimum dim level
  • Constant Current Reduction (CCR) Dimming

Benefits

  • Slim profile housing enables easy design-in with excellent thermal performance
  • Enables simple, fast, flexible application-specific configurations
  • Enables fixture designs with comprehensive application coverage for various loads and lumen levels

Application

  • Indoor linear applications such as troffers and pendants
  • Office
  • Education
  • Healthcare
  • Retail
  • Big box stores

Disclaimers

*This product typically ships in 7 to 10 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will be longer than 10 business days to ship. Due to the speciality nature of this product, all sales are final.

Extra Information

Brand:
Advance by Signify
UPC:
929002703813
Order Number:
XI020C056V054BST3M
Input Voltage (Vac):
120-277
Output Power (W):
20 Watt
Output Voltage (V):
10-54 Class 2 Output
Output Current (A):
0.1 - 0.56
Efficiency @ Max Load and 75°C Case:
86.0% - 87.0%
Max Case Temp. (°C):
Life75°C UL80°C
Input Current (A):
0.2 - 0.09
Max. Input Power (W):
24.8
THD @ Max Load (%):
Power Factor @ Max Load:
>0.95
Surge Protect. (Ring Wave, KV):
2.5
Envir. Protect. Rating:
UL damp & dry
Dimming:
0-10V Analog Class 1 or Class 2 Wiring
Dimming Range (with specified dimmers):
1% - 100% (Constant Current)
Minimum Output Current (A):
0.001
Driver Type:
Constant Current
Other Comments:
Dimming source current: 150 µA
Pack:
18
