Description
Self Testing Replacement Battery Back Up LED T8 Linear Lamp - 24" - 8W - On/Off Applications - 35K / 40K / 50K - 960 Lumens - 100-277V

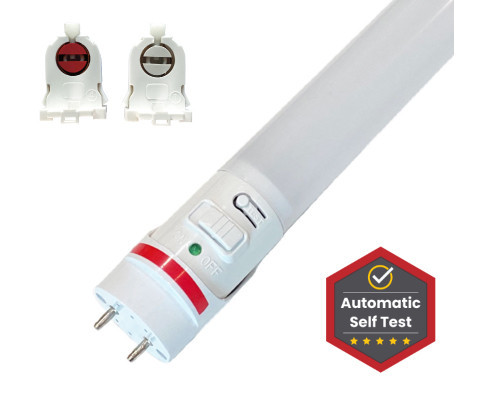

The Aleddra LLT-2-EM-T8-G4PRO-8W-3CCT is a 2ft LED T8 tube that functions as a regular T8 lamp during normal operation and as a UL924 emergency tube during power outages. It features built-in lithium batteries for over 90 minutes of emergency runtime and fully automatic self-testing (30 seconds monthly, 90 minutes annually).
Key Features
- 2-in-1 operation: Regular T8 lighting and emergency lighting in one lamp.
- Fully automatic self-testing: Monthly 30-second test and annual 90-minute test with automatic self-diagnosis and flashing indicator for faults.
- Patented locking lampholders: Secures the tube in place to meet UL924 safety requirements.
- Manual test button: Allows manual functional checks.
- 3CCT selectable: Easily switchable between 3500K, 4000K, and 5000K.
Emergency Lighting Specifications
- Emergency runtime: 90 minutes
- Emergency light output: 420 lm at 3.5W
- Emergency power: 3.5W
- Battery type: Built-in lithium batteries
Standard Lighting Specifications
- Lamp type: LED T8 linear tube
- Nominal length: 2-ft (24")
- Wattage: 8W
- Input voltage: AC100-277V
- Light output: 960 lm
- Color temperature: 3500K, 4000K, 5000K (3CCT)
- CRI: >80
- Power factor: >0.92
- Luminous efficacy: >120 lm/W
- Operating temperature: 50°F ~ 110°F
- Rated life: 50,000 hours
- Warranty: 5-year
Wiring & Installation Notes
- Ballast bypass required: The existing ballasts must be removed or by-passed.
Common Applications
- On/Off Applications: Areas where lighting is switched via wall control and emergency backup is required.
Compliance & Notes
- Certifications: UL924 certified; ETL certified for Type B (ballast bypass)
- UL924: UL924 certified
- Self-testing: Fully automatic self-testing (30-second monthly, 90-minute annual) with self-diagnosis and fault indicator
Why Choose Aleddra LLT-2-EM-T8-G4PRO-8W-3CCT?
The LLT-2-EM-T8-G4PRO-8W-3CCT delivers reliable normal and emergency lighting with built-in lithium battery backup and over 90 minutes of emergency runtime. Its patented locking lampholders meet UL924 safety requirements, and the lamp performs automated self-testing to reduce maintenance labor. 3CCT flexibility, high efficacy, and a 5-year warranty provide long-term value for on/off applications.
