Description

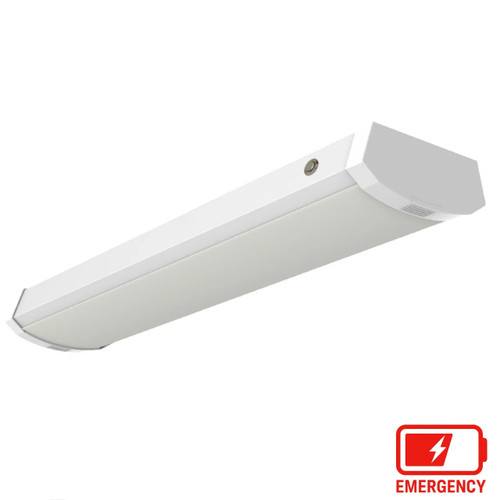

LED20WRAP/2FT-BB/5CCT/927-950/J/WH/D Low-Profile 24" Ceiling Wraparound | CCT Selectable 2700K/3000K/3500K/4000K/5000K
Reliable 90-Minute Emergency Operation During Power Interruptions
Upgrade low-clearance ceilings quickly with this slim, integrated 2' LED wrap designed for garages, laundry rooms, corridors and utility spaces; it combines high-efficiency performance with an on-board battery backup and five selectable color temperatures so installers and end users get the right light and emergency runtime without extra parts or rework.
KEY FEATURES:
- Five-Position CCT Switch: Toggle on the fixture back to choose Warm White to Daylight for consistent color across rooms.
- Integrated Battery Backup: Provides up to 90 minutes of emergency operation during power interruptions.
- High Efficacy: Delivers 2,300 lumens while consuming just 20W (115 LPW) to lower energy and maintenance costs.
- Thin, Low-Profile Design: Slim housing ideal for low clearance ceilings and shallow junction boxes.
- Dimmable: Compatible with dimming controls for flexible ambient light levels.
APPLICATIONS:
- Ideal for residential garages, hallways, and laundry or utility rooms where low-profile lighting is needed.
- Well suited for commercial back-of-house areas, storage rooms, and maintenance corridors.
- Useful in retrofit projects for replacing outdated fluorescent wrap fixtures without changing ceilings.
- Installation Tip: Toggle the rear color switch during installation to set the desired CCT before finalizing ceiling placement.
SPECIFICATIONS:
- Wattage: 20W
- Lumens: 2,300 lm
- Efficacy: 115 LPW
- Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90
- Voltage: 120-277V
- Dimmable: Yes
- Battery Backup: Up to 90 minutes emergency power
- Unit Dimensions: Length 24.800" — Width 5.350" — Height 2.560"
- Lifespan: 50,000 hours
- Warranty: 5 Year Limited Warranty
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certification: ETL Listed
- Location Rating: Damp Locations
- California Title 24: Compliant (T24: Y)
- Enclosed Rated: No
- P65 Warning: Yes
