Description
2x4 Grid Ceiling LED Troffer | Emergency Battery Backup | 20W-60W Selectable | CCT Selectable

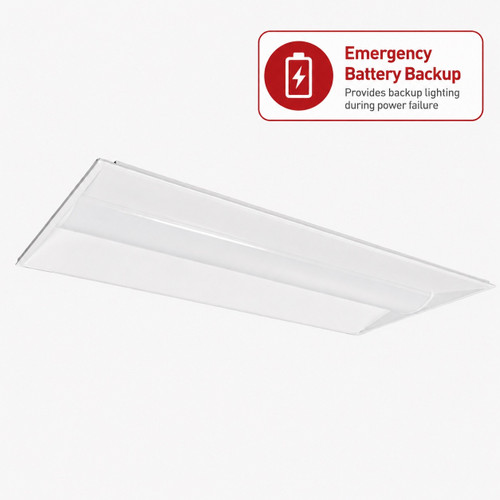

Deco DIG-GEN2-24MW60-EM is an emergency 2x4 center basket LED troffer designed for standard drop ceilings and recessed grid ceiling applications. This commercial lay-in ceiling fixture includes emergency backup for power loss conditions and features selectable 20W, 30W, 40W, 50W, and 60W output, selectable 3000K, 3500K, 4000K, 5000K, and 6500K color temperature, 3000 to 9000 lumen output, 110 degree beam angle, CRI greater than 80, 100,000 hour lifetime, and a clean center basket design for offices, schools, healthcare facilities, retail stores, and commercial interiors.
Don't need them all with emergency option? Please check out non-emergency version Deco Lighting DIG-GEN2-24MW60
Product Specifications
- Brand: Deco Lighting
- Model Number: DIG-GEN2-24MW60-EM
- Base Model: DIG-GEN2-24MW60
- Series: DIG Center Basket Luminaire
- Fixture Type: Emergency 2x4 center basket LED troffer
- Installation Type: Lay-in recessed installation for standard 2x4 drop ceilings and grid ceilings
- Emergency Option: Emergency backup installed
- Size: 2 ft x 4 ft
- Wattage: 20W/30W/40W/50W/60W selectable
- Lumen Output: 3000-9000 lumens
- Color Temperature: 3000K/3500K/4000K/5000K/6500K selectable
- Efficacy: Up to 150 lumens per watt
- Beam Angle: 110 degrees
- CRI: Greater than 80
- Dimming: 0-10V dimming shown in wiring diagram
- Lifetime: 100,000 hours
- Optical Design: No LGP, designed to resist yellowing
- Location Rating: Suitable for damp locations
- Available Options: Motion sensor and emergency backup configurations available by model option
- Certifications: UL listed, DLC Listed Premium
- Warranty: 5 year warranty included, 10 year optional
- Exact 2x4 dimensions: Cannot Source with confidence from provided spec sheet
Benefits
- Emergency backup supports illumination during power loss where required by project layout and code.
- Designed for standard 2x4 drop ceiling and lay-in grid ceiling installations.
- Center basket style gives the ceiling a more finished commercial look than a basic flat LED panel.
- Selectable wattage lets installers choose 20W, 30W, 40W, 50W, or 60W based on room size and desired light level.
- Selectable CCT provides 3000K, 3500K, 4000K, 5000K, and 6500K options for different interior lighting preferences.
- Up to 9000 lumens supports bright, efficient illumination for commercial and institutional spaces.
- 100,000 hour lifetime helps reduce long-term maintenance in high-use buildings.
- No LGP optical design helps reduce yellowing over time.
- 0-10V dimming supports compatible commercial lighting control systems.
- Multi-watt and multi-CCT design helps reduce SKU complexity for contractors, facility managers, and maintenance teams.
Applications
- Office drop ceilings
- Schools and classrooms
- Healthcare facilities
- Retail stores
- Conference rooms
- Commercial buildings
- Institutional facilities
- 2x4 grid ceiling lighting
- Emergency lighting layouts where approved by code and project requirements
- Lay-in LED troffer replacement projects
- Commercial interior lighting upgrades
Frequently Asked Questions
Is the Deco DIG-GEN2-24MW60-EM made for drop ceilings?
Yes. The Deco DIG-GEN2-24MW60-EM is a 2x4 lay-in LED troffer designed for standard drop ceilings and recessed grid ceiling applications.
Does this fixture include emergency backup?
Yes. This EM version includes emergency backup for power loss conditions. It should be installed according to project requirements, local code, and manufacturer instructions.
What type of fixture is this?
This is a 2x4 center basket LED troffer. It fits commercial grid ceilings and provides a more dimensional appearance than a basic flat LED panel.
What wattages can this fixture be set to?
This fixture is wattage selectable and can be set to 20W, 30W, 40W, 50W, or 60W.
What color temperatures are available?
This fixture is CCT selectable and can be set to 3000K, 3500K, 4000K, 5000K, or 6500K.
How many lumens does this 2x4 troffer produce?
The Deco DIG-GEN2-24MW60 produces 3000 to 9000 lumens, depending on the selected wattage and CCT setting.
Is this fixture dimmable?
Yes. The wiring diagram shows 0-10V dimming connections for compatible commercial dimming controls.
Where is this emergency LED troffer commonly used?
This fixture is commonly used in offices, schools, classrooms, healthcare facilities, retail stores, conference rooms, institutional buildings, and other commercial interiors with 2x4 drop ceilings.
Is this fixture different from a flat panel?
Yes. This model has a center basket design, which gives the ceiling a more dimensional commercial appearance compared to a flat LED panel.
What is the rated lifetime?
The manufacturer lists a 100,000 hour lifetime for this center basket luminaire series.
Is this fixture suitable for damp locations?
Yes. The manufacturer lists the fixture as suitable for damp locations.
Downloads
Disclaimers
*Typically ships within 5 to 7 business days. Lead times are estimates and may vary based on quantity and availability. Ships directly from the manufacturer.
