Description
2x4 Rectangle LED Center Basket Troffer with 90-Minute Emergency Battery Backup | Selectable 30/35/40W and 3500K/4000K/5000K

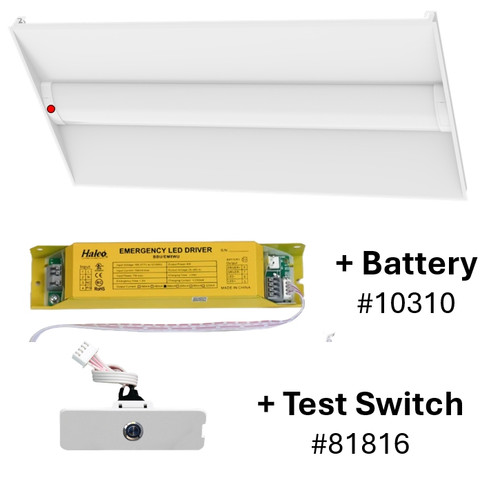

The Halco 81806 is a 2x4 LED center basket troffer with a built-in emergency battery backup that keeps it lit for at least 90 minutes during a power outage. Wattage and color temperature are selectable, so one fixture can match the light level and color the space needs. It is designed for 2x4 drop ceiling grids.
Features
- Color & Lumen Selectable: Easily choose from Warm, Cool, or Daylight settings and adjust output to fit the space.
- Integrated Emergency Battery: Delivers at least 90 minutes of light during outages critical for safety compliance.
- Controls Ready: Features a standard 3.5mm receptacle for plug-and-play sensor or controls integration.
- Quick Retrofit: Designed to fit standard 2x4 grid ceilings, significantly speeding up installation times versus new construction fixtures.
- Long-Lasting Performance: 50,000-hour lifetime minimizes ongoing maintenance and fixture replacements.
Specifications
- Product Code: CBT-24-LS-CS-UNV-EM
- Size: 2x4 ft
- Fixture Type: Center Basket Troffer
- Wattage: 30/35/40W selectable
- Lumens: 4,000/4,500/5,000 lm
- Efficacy: 125 lm/W
- Color Temperature: 3500K/4000K/5000K selectable
- CRI: 80
- Voltage: 120-277V
- Dimming: 0-10V
- Rated Life: 50,000 hours
- Location Rating: Damp location, IC rated
- Warranty: 5 years
Emergency Operation
- Battery Backup: Built-in, factory installed
- Runtime: 90 minutes minimum
Installation & Compatibility
- Lays into standard 2x4 drop ceiling grids
- Accepts 3.5mm plug-in occupancy and daylight sensors
Rebates & Certifications
- UL Listed, DLC 5.1 Premium, IC Rated
- DLC Premium
- DLC listings often qualify for utility rebates. Check with your local utility before you buy.
Applications
- Perfect for schools, universities, and commercial offices seeking modern, flexible lighting.
- Ideal in healthcare settings and retail stores where emergency egress and safety lighting are required.
- Best used in recessed grid ceilings sensor-ready and compatible with most 0-10V dimmer systems.
Frequently Asked Questions
Does this fixture have emergency backup?
Yes. It has a built-in battery backup that runs for at least 90 minutes when power is lost.
Can I change the settings after installation?
Yes. Wattage (30/35/40W) and color temperature (3500K/4000K/5000K) are selectable on the fixture.
Is it dimmable?
Yes, with a 0-10V dimming control.
Does it qualify for rebates?
It is DLC Premium listed, which often qualifies for utility rebates. Check with your local utility.
