Description
40 Watt High Voltage Industrial Emergency Battery Back Up for Highbays with Remote

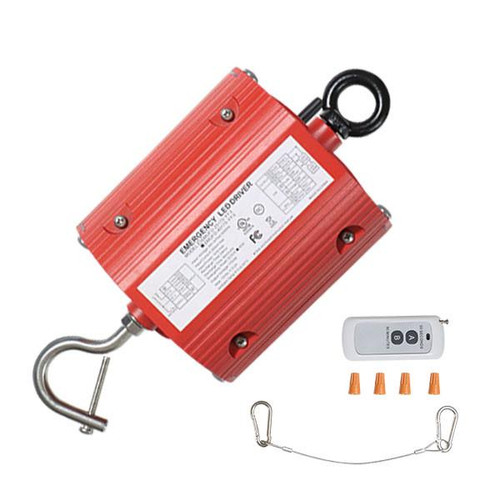

The Helpower EMUFO-40500DI-YY 40W Emergency Backup Driver is a high-voltage solution designed for industrial LED high bay fixtures, offering dependable backup lighting in case of a power outage. Built to meet rigorous safety standards, this emergency driver provides up to 90 minutes of backup illumination, ensuring visibility and safety in critical spaces such as warehouses, factories, and industrial facilities. With a wide input voltage range of 277-480V AC and a compact, integrated design, this driver simplifies installation while offering robust protection and remote test functionality.
Ideal for high bay UFO LED lights with 0-10V dimmable drivers, this driver delivers reliable performance and is certified for both dry and damp locations.
Key Features
- High Voltage Compatibility: Operates with input voltage from 277-480V AC, suitable for industrial environments.
- Constant Power Output: Provides a steady 40W of emergency power, supporting larger LED fixtures for up to 90 minutes.
- Integrated Junction Box: Simplifies installation by eliminating the need for an external junction box.
- Remote Testing: Includes a remote control for easy, reliable emergency testing.
- Triple Protection: Equipped with short circuit, overload, and open load protection for enhanced safety.
- Waterproof and Durable: IP65-rated, suitable for dry and damp locations.
- Lithium Battery: Offers 1,000 recharge cycles with a 24-hour recharge time.
Benefits
- Easy Installation: Designed with an integrated junction box, simplifying the wiring process and ensuring a hassle-free setup.
- Wide Application Range: Suitable for high bay UFO LED fixtures in warehouses, industrial spaces, and large commercial areas.
- Extended Emergency Operation: Delivers up to 90 minutes of backup power to meet emergency lighting standards.
- Compliance and Safety: Certified under UL 924, NFPA 101 (Life Safety Code), NFPA 70 (National Electrical Code), and CEC Title 20 for performance and safety.
- Durability: Waterproof IP65-rated for installation in damp locations and engineered to withstand challenging environments.
Applications
The Helpower EMUFO-40500DI-YY 40W Emergency Backup Driver is ideal for:
- Warehouses and Industrial Facilities: Maintains essential lighting for safe navigation during outages.
- Large Commercial Spaces: Provides reliable emergency lighting in areas where high-voltage fixtures are needed.
- Factories and Production Facilities: Ensures operational safety with uninterrupted backup lighting in critical zones.
- High Ceilings and High Bay Fixtures: Optimized design for UFO high bay lights used in spacious environments.
How to Calculate Lumens During Emergency Operation
To determine the lumen output in emergency mode, multiply the fixture’s lumens per watt (LM/W) by the driver’s rated emergency output (40W). This helps assess the emergency lighting level needed for optimal visibility and safety.
