Description

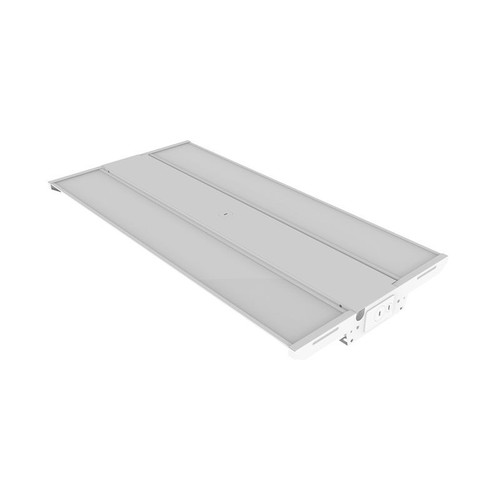

ELHB2-155W1023cws Commercial LED Linear High Bay | CCT Selectable 4000K–5000K | Adjustable Wattage for Warehouses, Gyms, Retail
The Euri Lighting ELHB2-155W1023cws LED Linear High Bay is designed to provide superior illumination in large commercial and industrial spaces. With selectable wattage options (155W, 130W, 90W) and a CCT range of 4000K–5000K, it ensures flexibility and efficiency while replacing outdated HID fixtures. This fixture reduces energy consumption and maintenance costs while delivering uniform, high-output lighting for demanding environments.
KEY FEATURES:
- Selectable Performance: Choose from three wattage settings (155W, 130W, 90W) to match lighting needs and save energy.
- Flexible Lighting: Dual CCT selectable range (4000K–5000K) adapts to different application preferences.
- High Output Efficiency: Delivers up to 20,925 lumens at 135 lm/W for bright, reliable coverage.
- Dimmable Design: 0-10V dimming capability supports advanced lighting controls.
- Durable Build: Damp location rated and operational in -40°F to 122°F environments.
APPLICATIONS:
- Ideal for warehouses, gymnasiums, and retail stores requiring powerful, efficient lighting.
- Perfect for industrial production areas where consistent, high-output illumination is essential.
- Best used in facilities needing adaptable wattage and color temperature for different zones.
SPECIFICATIONS:
- Wattage: 90W / 130W / 155W selectable
- Lumens: 12,150 lm (90W), 17,550 lm (130W), 20,925 lm (155W)
- Efficacy: 135 lm/W
- Color Temperature: 4000K–5000K selectable
- CRI: 80
- Voltage: 120–277V
- Beam Angle: 90°
- Power Factor: 0.9
- Lifespan: 50,000 hours
- Dimmable: 0-10V
- Dimensions: 23.78”(W) × 1.89”(D) × 11.93”(H)
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: ETL Listed
- Performance Certifications: DLC 5.1 Premium
- Location Rating: Damp rated
- Warranty: 5-year limited warranty
