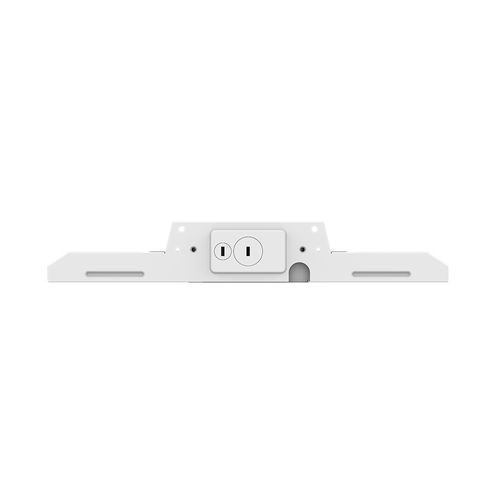

ELHB4-320W1023cws Commercial LED Linear High Bay | Adjustable Wattage and CCT Selectable Fixture for Warehouses, Gyms, and Retail
The Euri Lighting ELHB4-320W1023cws LED Linear High Bay is designed to maximize efficiency and flexibility in large indoor spaces. Replacing outdated HID systems, this advanced fixture offers selectable wattage and color temperatures, reducing energy costs while providing dependable illumination for demanding commercial and industrial applications.
KEY FEATURES:
- Flexible Output: Choose from three wattage settings (220W, 265W, 320W) to match application needs.
- CCT Selectable: Switch between 4000K neutral white and 5000K daylight to optimize visibility.
- Energy Efficient: Delivers up to 135 lm/W for significant energy savings over traditional HID fixtures.
- Durable Performance: Rated for 50,000 hours with reliable operation in temperatures from -40°F to 122°F.
- Dimmable Design: 0-10V dimming capability supports adaptive lighting controls.
APPLICATIONS:
- Ideal for warehouses, distribution centers, and industrial facilities.
- Perfect for gyms, large retail stores, and commercial halls requiring uniform brightness.
- Best used in areas needing selectable wattage flexibility and adaptable CCT control.
SPECIFICATIONS:
- Wattage: 220W / 265W / 320W
- Lumens: 29,700 lm (220W), 35,775 lm (265W), 43,200 lm (320W)
- Efficacy: 135 lm/W
- Color Temperature: 4000K / 5000K (CCT Selectable)
- CRI: 80
- Voltage: 120-277V
- Beam Angle: 90°
- Power Factor: 0.9
- Lifespan: 50,000 hours
- Dimmable: 0-10V
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: ETL Listed, DLC 5.1 Premium
- Location Rating: Damp Rated
- Warranty: 5-year limited warranty
