Landscape Lighting Power Connector | 3-Pin | 400V / 24A | IP68 | Outdoor Rated

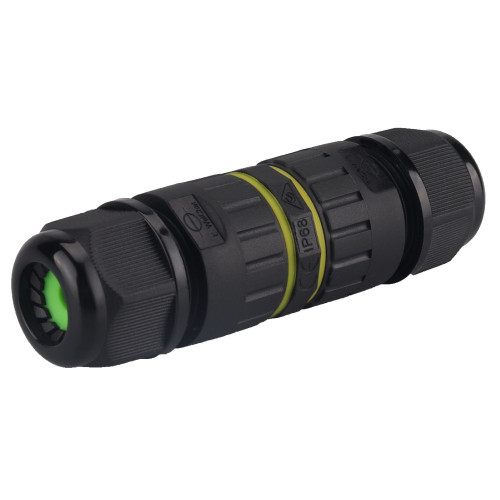

EW-M20-3P is a straight 3-pin waterproof cable connector designed for outdoor and landscape lighting applications where reliable, sealed electrical connections are required. Built with a PA66 housing, brass contacts, and silicone sealing components, this connector supports high current loads while maintaining IP68 protection against water and dust. It is ideal for both low-voltage and line-voltage landscape lighting systems, outdoor LED fixtures, and other exposed electrical installations.
Product Specifications
- Connector Type: Straight waterproof cable connector
- Pin Configuration: 3-Pin
- Maximum Voltage: 400V
- Maximum Current: 24A
- Test Voltage: 2500V
- Cable Outer Diameter Range: 5–9 mm
- Supported Wire Cross Section: 0.5–2.5 mm²
- Protection Rating: IP68
- Operating Temperature: -40°C to +105°C
- Housing Material: PA66
- Contact Material: Brass
- Sealing Material: Silicone
- Flame Rating: UL94-V2
- Certifications: RoHS, TUV, SAA, CE
- Connector Size: M20
- Weight: 28 g
Benefits
- Provides a secure, waterproof electrical connection for outdoor environments
- IP68 sealing protects against rain, irrigation spray, and ground moisture
- Supports high current loads for demanding landscape lighting systems
- Wide temperature range ensures reliable year-round performance
- Durable flame-retardant housing suitable for permanent installations
Applications
- Landscape lighting power connections
- Outdoor LED fixtures and floodlights
- Garden, pathway, and architectural lighting systems
- Exterior power distribution for commercial and residential lighting
- Any outdoor application requiring sealed 3-conductor connections
Downloads
FAQ - EW-M20-3P Landscape Lighting Connector
What is this connector used for in landscape lighting?
This 3-pin straight waterproof connector is used to create secure, sealed electrical connections in outdoor and landscape lighting systems where moisture protection is required.
Is this connector waterproof for outdoor landscape installations?
Yes. It carries an IP68 rating, meaning it is protected against dust and water exposure commonly found in landscape lighting environments.
What cable sizes does this connector support?
It supports cables with a 5–9 mm outer diameter and wire cross sections from 0.5–2.5 mm², which are typical for outdoor and landscape lighting applications.
Can this connector be used for low-voltage landscape lighting?
Yes. It works well in low-voltage landscape lighting systems when the cable size and conductor range match the connector specifications.
Is it suitable for line-voltage outdoor lighting?
The connector is rated up to 400V and 24A. It can be used for line-voltage outdoor lighting when installed properly and in compliance with local electrical codes.
Does installation require special tools?
No. Installation can be completed using standard wiring practices without special tools.
Where is this connector commonly used in landscape lighting systems?
It is commonly used at fixture connections, outdoor junction points, LED driver connections, and power distribution runs that require waterproof sealing.
