Description
100W HID Replacement - 12,000 lm - Type B Ballast Bypass - 120-277V

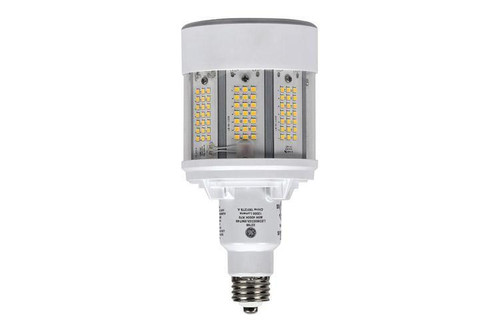

The GE 22676 is an 80-watt ED23 LED bulb rated to replace compatible 100W HID lamps from an EX39 Mogul Extended base. Explore more HID-to-LED bulbs by replacement wattage, lumen output, base type, voltage and operation type.
Product Specifications
- Brand: GE Lighting
- Manufacturer Model: LED80ED23.5/750
- Actual LED Wattage: 80 Watt
- HID Replacement: 100W
- Lumen Output: 12,000 lm
- Color Temperature: 5000K
- Base: EX39 Mogul Extended
- Operation Type: Type B | Ballast Bypass (direct-wire line voltage)
- Voltage: 120-277V
- CRI: 70
- Dimmable: No
- Bulb Shape: ED23 / ED23.5
- Dimensions: 7.8 in (MOL), 3.7 in (Diameter)
- Rated Life: 50,000 hours
- Certifications: DLC QPL, Damp Location Rated, cULus
- Warranty: 5 Years
Benefits
- Retains the existing fixture housing when replacing compatible 100W HID lamps
- Type B ballast-bypass operation removes the existing ballast from the circuit
- Rated for 50,000 hours of operation
Applications
- Warehouses, retail spaces, and outdoor parking areas
- Ideal replacement for inefficient HID systems in commercial settings
- Compatible commercial and industrial HID fixtures
- Compatible wall packs and area lights
- Damp-location fixtures per the stated rating
Downloads
Disclaimers
*This product is built to order and typically ships in 7 to 10 business days. Larger quantities may require additional processing time. All lead times are estimates, and you will be notified by email if the order is expected to take longer than 10 business days to ship.
