Description
250W HID Replacement - 12,000 lm - Type B Ballast Bypass - 277-480V

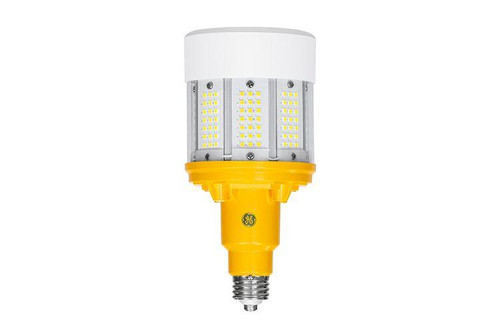

The GE 93148147 is an 80-watt ED23 LED bulb rated to replace compatible 250W HID lamps from an EX39 Mogul Extended base. Review our complete range of high wattage bulbs and review wattage, lumen output, base, voltage and fixture requirements side by side.
Product Specifications
- Brand: GE Lighting
- Manufacturer Model: LED80ED23.5/750/277/480/HAZ
- Actual LED Wattage: 80 Watt
- HID Replacement: 250W
- Lumen Output: 12,000 lm
- Color Temperature: 5000K
- Base: EX39 Mogul Extended
- Operation Type: Type B | Ballast Bypass (direct-wire line voltage)
- Voltage: 277-480V
- CRI: 70
- Dimmable: No
- Bulb Shape: ED23 / ED23.5
- Dimensions: 7.8 in (MOL), 3.7 in (Diameter)
- Rated Life: 50,000 hours
- Certifications: Damp Location Rated, cULus
- Warranty: 5 Years
Benefits
- Retains the existing fixture housing when replacing compatible 250W HID lamps
- Type B ballast-bypass operation removes the existing ballast from the circuit
- Rated for 50,000 hours of operation
Applications
- Warehouses, factories, and hazardous work environments
- Compatible commercial and industrial HID fixtures
- Compatible wall packs and area lights
- High bays with adequate lamp clearance
- Damp-location fixtures per the stated rating
Downloads
Disclaimers
*This product is built to order and typically ships in 7 to 10 business days. Larger quantities may require additional processing time. All lead times are estimates, and you will be notified by email if the order is expected to take longer than 10 business days to ship.
