Description
Bluetooth SIG Mesh High Bay Motion Sensor | 12–24V Input | 0–10V Output | 40 ft Mounting Height | IP65 Rated

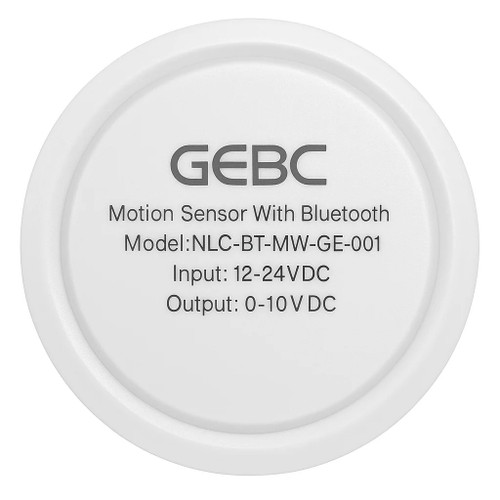

GEBC NLC-BT-MW-GE-001 is a Bluetooth-enabled microwave fixture sensor designed for high-bay and commercial lighting applications. This unit provides 360° detection, supports mounting heights up to 40 ft, includes an onboard LED motion indicator, and communicates over Bluetooth SIG mesh for wireless grouping and control. It delivers a 0–10V dimming output, bi-level lighting capability, and stable performance across extreme temperatures.
Product Specifications
- Motion sensor type: microwave sensor (5.8GHz ± 75MHz)
- Input power: 12–24V DC, >50mA
- Control output: 0–10V, max 25mA sinking current
- Transmission power: <0.2mW
- Detection angle: 360°
- Mounting height: up to 40 ft (12m)
- Max Bluetooth range: 200 ft (60m) typical indoor environment
- Bluetooth network: Bluetooth® SIG mesh
- LED motion indicator: yes
- IP rating: IP65
- Operating temperature: –40°F to +158°F (–40°C to +70°C)
- Features: high-end trim, zoning, continuous bi-level dimming
- Antenna: onboard
- Additional function: magnetic reset (touch side of sensor for 5 seconds) for wireless pairing and reset commands
- Warranty: 5 years
Benefits
- Microwave sensing provides fast, accurate occupancy detection compared to passive infrared.
- Bluetooth SIG mesh enables wireless control, grouping, and communication across large facilities.
- Supports high-bay installations up to 40 ft, ideal for warehouses and industrial spaces.
- IP65 rating protects against dust and moisture for demanding environments.
- 0–10V dimming output enables full bi-level lighting strategies for energy savings.
- Low HF transmission power (<0.2mW) ensures safe operation and minimal interference.
- LED indicator provides quick visual confirmation of motion events.
Applications
- High-bay warehouse lighting
- Distribution centers and logistics facilities
- Manufacturing plants
- Gymnasiums and large indoor areas
- Parking garages
- Commercial and industrial retrofits
- Bluetooth-controlled lighting networks
