T8 U-Bend Fluorescent Replacement | 32W | 6" Leg Spacing | Eco-Shield | 86 CRI | Neutral White

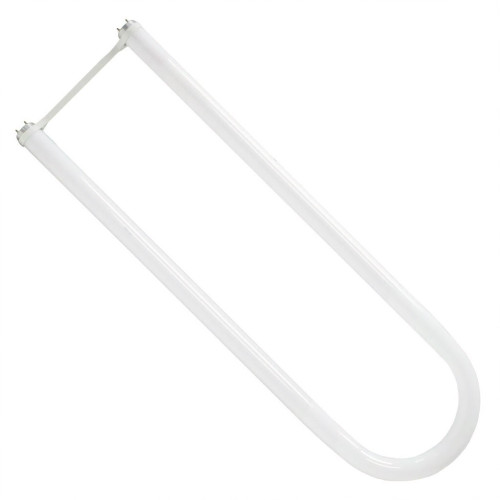

Halco 109814 FB32/835/6/ECO is a 32-watt T8 U-Bend fluorescent lamp engineered for energy-efficient commercial lighting. With Eco-Shield® phosphor and a high CRI of 86, it delivers 2,900 initial lumens of neutral white (3500K) light. The lamp features a 6-inch leg spacing and a total length of 22.6 inches, making it ideal for use in standard U-bend troffers found in offices, schools, and retail environments. Its cathode guard minimizes end-blackening, helping maintain optimal brightness over the lamp’s long life.
Features
- Wattage: 32W
- Initial Lumens: 2,900
- Mean Lumens: 2,750
- Color Temperature: 3500K (Neutral White)
- CRI: 86
- Base Type: G13 Bi-Pin
- Leg Spacing: 6 inches
- Maximum Overall Length (MOL): 22.6 inches
- Coating: Eco-Shield® phosphor
- Average Rated Life: 24,000 to 30,000 hours
- Brass pins and cathode guard for lumen maintenance
Benefits
- Energy savings over standard T12 lamps
- Excellent color rendering for color-sensitive applications
- Reduced end-blackening maintains brightness
- Long life lowers maintenance frequency and costs
Applications
- Office lighting
- Educational facilities
- Retail and commercial spaces
- Government and municipal buildings
- Industrial and manufacturing environments
Product Specifications
- Model Number: 109814
- Ordering Code: FB32/835/6/ECO
- Wattage: 32W
- Lumens: 2,900 initial / 2,750 mean
- CCT: 3500K
- CRI: 86
- Base: G13 Bi-Pin
- Leg Spacing: 6 inches
- Length: 22.6 inches
- Rated Life: 24,000 to 30,000 hours
- Warranty: 2 Years
