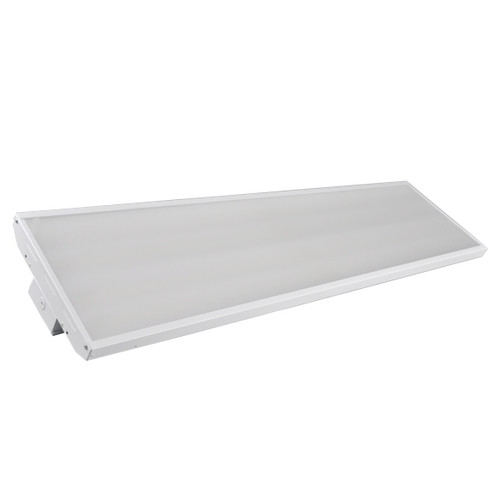

LHB-4-WS-40-U-LVMS Selectable High Bay Fixture | Cool White 4000K For Warehouses, Retail - Built-In Low-Voltage PIR Sensor
Specifically designed to modernize industrial and commercial facilities, this Halco selectable linear high bay replaces legacy HID systems with energy-saving LED performance and integrated motion sensing to reduce run-hours and maintenance. The fixture ships with mounting hardware and a low-voltage PIR sensor for immediate occupancy control in warehouses, gymnasiums, and big-box retail environments.
KEY FEATURES:
- Wattage Selectable: Field-selectable 320W, 280W or 240W to match lumen needs and reduce overlighting.
- Integrated Occupancy Control: Includes a Low-Voltage PIR Motion Sensor for automated energy savings and zone-based control.
- High Output: Delivers approximately 43,000 lumens to replace 8-Lamp T5HO / 1000W HID systems.
- Durable Construction: Steel housing with frosted polycarbonate lens and white finish for long service life in industrial spaces.
- Controls Ready: 0-10V dimmable and supports integrated controls and emergency backup options where required.
APPLICATIONS:
- Distribution warehouses and fulfillment centers.
- Big-box retail and gymnasiums requiring high-output continuous illumination.
- Manufacturing facilities and industrial workspaces.
- Usage Tip: Use the built-in PIR sensor to zone luminaires and reduce runtime during low-occupancy shifts.
SPECIFICATIONS:
- Wattage: Selectable 320W, 280W, 240W
- Lumens: 43,000
- Color Temperature: 4000K (Cool White)
- CRI: 80
- Voltage: 120-277V & 347-480V
- Dimmable: Yes (0-10V)
- Average Life: 100,000 hours
- Power Factor: 0.9
- Beam Type: Wide
- Finish: White
- Lens: Frosted Polycarbonate
- Housing Material: Steel
- Included Accessory: Chain & V Hook and Low Voltage PIR Motion Sensor
- Warranty: 5 years
- Certifications: DLC 5.1 Premium, UL Listed, RoHS Compliant
- Sold In Multiples Of: 1
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: DLC 5.1 Premium, UL Listed
- Location Suitability: Commercial and Industrial Applications
