Description

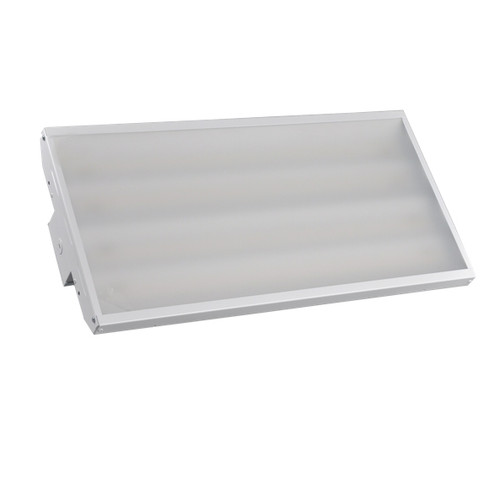

LHB-2-WS-50-U-EM-LVMS Selectable Linear High Bay | Daylight 5000K | 110/135/160W Selectable, PIR Sensor & Emergency Driver
Purpose-built for large commercial and industrial spaces, this selectable Halco linear high bay replaces legacy HID fixtures with high-output LED performance while reducing maintenance and simplifying emergency readiness. The fixture's selectable wattage and integrated controls minimize stocking SKUs and speed installation in warehouses, retail, and manufacturing facilities.
KEY FEATURES:
- Wattage Selectable: Field-selectable 160W, 135W, or 110W to match site illumination needs.
- Integrated Emergency Driver: Emergency battery backup included for continued operation during outages.
- Occupancy Sensing: Low-voltage PIR motion sensor included for energy savings in variable-occupancy areas.
- Dimmable Control: 0-10V dimming compatibility for flexible lighting control and energy management.
- Long-Life Performance: High lumen output with a 100,000-hour average life reduces relamping and maintenance.
APPLICATIONS:
- Ideal for distribution warehouses and storage facilities requiring reliable, high-output illumination.
- Well-suited for big-box retail and gymnasiums where durable, uniform light is needed.
- Appropriate for manufacturing and industrial plants needing long-life, low-maintenance fixtures.
- Installation Tip: Use the wattage-select feature to balance energy use and target foot-candle requirements per zone.
SPECIFICATIONS:
- Wattage: Selectable 160W, 135W, 110W
- Lumens: 21,500
- Color Temperature: 5000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 120-277V & 347-480V
- Average Life: 100,000 hours
- Warranty: 5 years
- Power Factor: 0.9
- Beam Type: Wide
- Min/Max Operating Temp: -40C (-40F) to 55C (131F)
- Finish: White
- Lens: Frosted Poly Carb
- Housing Material: Steel
- Included Accessory: Chain & V Hook, Emergency Battery Backup, Low Voltage PIR Motion Sensor
- Input Frequency: 50/60Hz
CERTIFICATIONS & ADDITIONAL NOTES:
- Qualification: DLC 5.1 Premium
- Safety: UL Listed
- Compliance: RoHS Compliant; FCC
