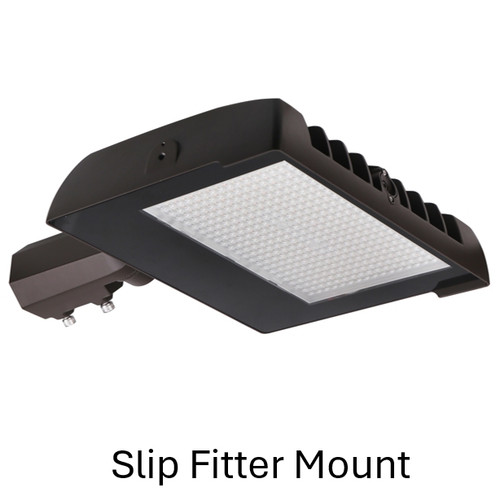

SFLD3-LS-CS-H-BZ-3PR Lens-Shift Floodlight | Selectable Soft White To Daylight | Adjustable Wattage, Slipfitter & Trunnion Mounts
Designed for fast field adjustments in commercial and industrial outdoor spaces, the Halco Sektor Lens-Shift floodlight enables contractors to tune beam distribution, lumen output and color temperature on-site—reducing reorders and installation time while delivering targeted, energy‑efficient illumination.
KEY FEATURES:
- Lens-Shift Optics: Quickly change between NEMA distributions for precise beam shaping with a simple dial.
- Selectable Output: Choose 60W, 80W or 100W and adjust lumen output (7,800–14,800 lm) to match application needs and save energy.
- Selectable Color: Field-selectable color temperatures (3000K, 4000K, 5000K) for consistent site lighting.
- Versatile Mounting: Includes slipfitter for 2 3/8" tenon and trunnion (knuckle & trunnion included) for multiple mounting options.
- Rugged Outdoor Ready: Die-cast aluminum housing with bronze powder coat, tempered glass lens and IP65 wet-location rating.
- Controls Ready: NEMA 3-pin receptacle and 0–10V dimming support for integrated control strategies.
APPLICATIONS:
- Distribution centers and warehouses seeking targeted, high-efficacy illumination.
- Perimeter and security lighting for commercial properties and parking areas.
- Retail centers, signage, and outdoor general lighting where beam control is critical.
- Usage Tip: Use the slipfitter on a 2 3/8" tenon for quick aiming and fine-tune distribution with the lens-shift dial.
SPECIFICATIONS:
- Manufacturer: Halco Lighting Technologies
- Model / Product Code: SFLD3-LS-CS-H-BZ-3PR
- Wattage: Selectable 60W, 80W, 100W
- Lumens: 7,800–14,800
- Color Temperature: Selectable 3000K, 4000K, 5000K
- CRI: 80
- Beam Angle: 55° / 75° / 90° (adjustable)
- Light Distribution: Lens Shift (NEMA 5, 6 or 7)
- Input Voltage: 277–480V
- Dimmable: Yes (0–10V)
- Average Life: 100,000 hours
- Operating Temp Range: -40°C to 50°C (-40°F to 122°F)
- Mount Included: Slipfitter and Trunnion (Knuckle)
- Finish: Bronze Powder Coat
CERTIFICATIONS & ADDITIONAL NOTES:
- DLC: DLC 5.1 Premium
- Safety Listings: UL Listed
- Environment: Suitable for Wet Locations, IP65
- Warranty: 5-year limited warranty
