Description

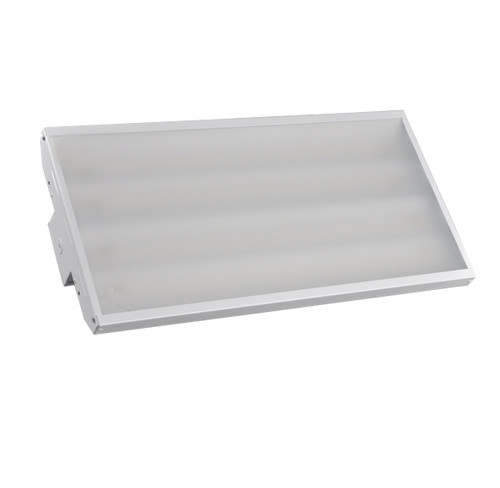

LHB-1-WS-50-U-LVMS Selectable Linear Highbay | Daylight 5000K Commercial/Industrial Warehouse Lighting With Low-Voltage PIR Sensor
The Halco ProLED Select Linear Highbay simplifies high-bay upgrades by combining selectable lumen output, long-life LEDs, and an integrated low-voltage PIR motion sensor for energy savings and reduced maintenance in commercial and industrial facilities.
KEY FEATURES:
- Wattage Selectable: Choose 110W, 90W, or 70W to match aisle heights and task requirements.
- Integrated Occupancy Sensing: Includes a low-voltage PIR motion sensor for automated energy savings in intermittent-use spaces.
- Long Life & Durable: 100,000 hour average life with a steel housing and frosted polycarbonate lens for reliable performance.
- Controls Ready: Dimmable via 0-10V and supports integrated controls and emergency backup options.
- Universal Voltage: Wide input range for flexible installation across commercial power systems.
APPLICATIONS:
- Ideal for distribution warehouses and big-box retail where high-output, controllable lighting is required.
- Well suited for manufacturing floors and gymnasiums needing robust, long-life illumination.
- Great choice for commercial and industrial facilities seeking lower maintenance and energy costs.
- Usage Tip: Use the selectable wattage to optimize spacing and lumen density during commissioning.
SPECIFICATIONS:
- Wattage: Selectable 110W, 90W, 70W
- Lumens: 15,000
- Color Temperature: 5000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 120-277V & 347-480V
- Average Life: 100,000
- Beam Type: Wide
- Power Factor: 0.9
- Min Operating Temp: -40C (-40F)
- Max Operating Temp: 55C (131F)
- Included Accessory: Chain & V Hook and Low Voltage PIR Motion Sensor
- Finish: White
- Lens: Frosted Poly Carb
- Housing Material: Steel
- Warranty: 5 years
- Sold In Multiples Of: 1
- Weight Per Item: 16
CERTIFICATIONS & ADDITIONAL NOTES:
- Qualifications: DLC 5.1 Premium
- Safety Listings: UL Listed
- Compliance: RoHS Compliant
