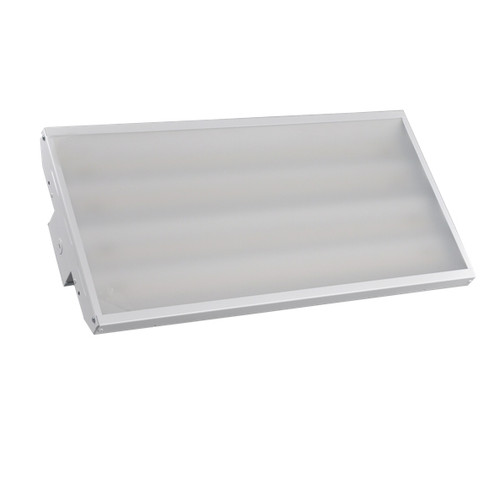

LHB-4-WS-40-U-PIRMS Select Linear Highbay With PIR Motion Sensor | Cool White 4000K For Commercial And Industrial Spaces
The Halco LHB-4-WS-40-U-PIRMS ProLED Select Linear Highbay simplifies high-output installations by combining selectable wattage, a factory-installed PIR motion sensor, and universal voltage in a durable steel housing. Delivering up to 43,000 lumens at selectable 320/280/240W and engineered to replace 8-lamp T5HO/1000W HID systems, it reduces maintenance and provides long-life performance for large commercial and industrial spaces.
KEY FEATURES:
- Wattage Selectable: Field-selectable 320W, 280W, or 240W to match lumen needs and lower operating costs.
- Integrated PIR Sensor: Factory-installed motion sensing reduces run-time and increases energy savings in intermittently occupied spaces.
- Universal Voltage: Compatible with 120-277V and 347-480V supplies for flexible installation.
- Dimmable Control: 0-10V dimming support enables smooth lumen tuning and integration with building controls.
- High Output & Long Life: Delivers 43,000 lumens with an average life of 100,000 hours for reduced maintenance cycles.
- Robust Construction: White finish, steel housing and frosted polycarbonate lens for durable, wide-spread illumination.
APPLICATIONS:
- Distribution warehouses and logistics centers.
- Retail and big-box stores requiring high uniform light levels.
- Gymnasiums and manufacturing facilities with high-ceiling requirements.
- Usage Tip: Use the onboard PIR settings and 0-10V controls to minimize runtime and maximize energy savings during low-occupancy periods.
SPECIFICATIONS:
- Wattage: Selectable 320W, 280W, 240W
- Lumens: 43,000
- Input Voltage: 120-277V & 347-480V
- Input Frequency: 50/60Hz
- Dimmable: Yes (0-10V)
- Color Temperature: 4000K (Cool White)
- CRI: 80
- Average Life: 100,000
- Beam Type: Wide
- Power Factor: 0.9
- Min Operating Temp: -40C (-40F)
- Max Operating Temp: 55C (131F)
- Finish: White
- Lens: Frosted Poly Carb
- Housing Material: Steel
- Included Accessory: Chain & V Hook and PIR Motion Sensor
- Warranty: 5 years
- Weight Per Item: 26.7
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium, UL Listed, RoHS Compliant, FCC
- Emergency Backup: Available
- Integrated Controls: Available
