Description
SAL2-4-LS-CS-T35X-U-BZ Field-Interchangeable Type III/Type V Area Light With Zhaga Z10 Receptacle For Outdoor Parking And Campus

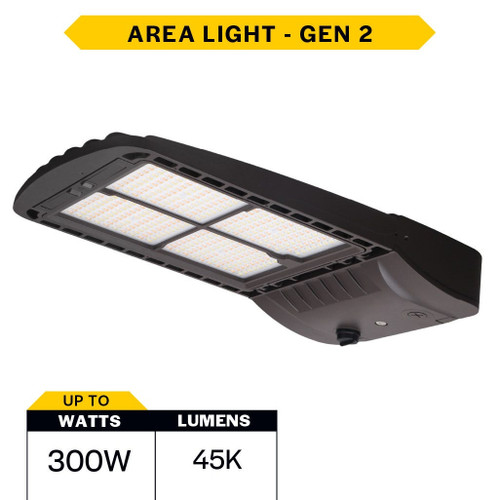

Built for flexible, low‑maintenance outdoor lighting, the Halco Sektor Area Light G2 (25403) lets installers adapt optics, lumen output, and color temperature in the field to suit parking lots, roadways, and campus sites. Toolless access, included Type 3 lens plus a Type 5 lens, and Zhaga Z10 sensor compatibility simplify installs and future upgrades while minimizing downtime.
KEY FEATURES:
- Field-Interchangeable Optics: Type III installed with Type V included for fast distribution swaps without tools.
- Selectable Output: Wattage options of 200W, 250W, or 300W with corresponding lumen outputs for right‑sizing illumination.
- Color Flexibility: Selectable color temperatures (3000K, 4000K, 5000K) to match site needs and aesthetic goals.
- Sensor-Ready: Built-in Zhaga Z10 receptacle enables plug-and-play Bluetooth or standalone sensors and controllers.
- Robust Outdoor Performance: IP65 housing with 10kVA surge protection and long 100,000‑hour rated life.
APPLICATIONS:
- Ideal for parking lots and perimeter lighting where adaptable distributions are required.
- Well suited to roadway and street lighting projects needing field-adjustable optics.
- Great for campus and retail outdoor areas that benefit from selectable lumen and color options.
- Installation Tip: Use the Zhaga Z10 receptacle to add plug-and-play sensors for scheduled dimming and occupancy control.
SPECIFICATIONS:
- Wattage: Selectable 200W, 250W, or 300W
- Lumens: Selectable 31,000 / 38,000 / 45,000
- Color Temperature: CCT Selectable (3000K, 4000K, 5000K)
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 120-277VAC
- Amps: 120VAC (3.0A); 277VAC (1.2A)
- Average Life: 100,000 hours
- Power Factor: 0.90
- IP Rating: IP65 (Wet Location)
- Surge Protection: 10kVA
- Finish: Powder-Coated Bronze
- Mount Included: No (mounts sold separately)
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings & Qualifications: DLC 5.1 Premium; UL Listed for Wet Location
- Environmental & Safety: FCC, RoHS, 3G Vibration
- Warranty: 5-year limited warranty
