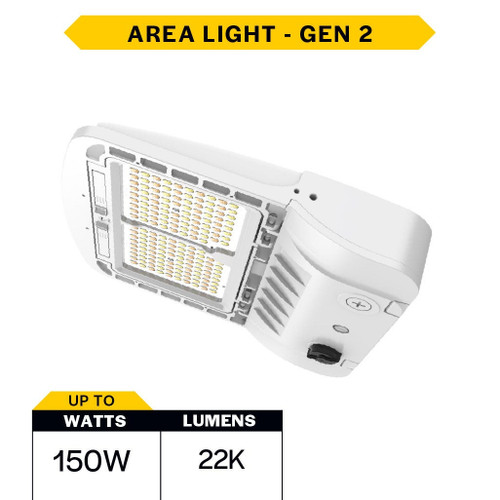

SAL2-2-LS-CS-T35X-U-WH Versatile LED Area Fixture With Zhaga Z10 | Cool White 4000K Field-Changeable T3/T5 Optics For Parking
Built for flexible, low-maintenance outdoor illumination, the SekTor Area Light G2 simplifies specifying and servicing parking lots and perimeter sites. Field-selectable lumen packages and color temperatures, tool-less lens access, and a Zhaga Z10 receptacle enable fast installs, sensor upgrades, and long-term energy savings without replacing fixtures.
KEY FEATURES:
- Field-Selectable Output: Selectable wattages (100W, 120W, 150W) and lumen packages to match mounting height and spacing.
- Color Flexibility: Color temperature selectable between 3000K, 4000K, and 5000K for tailored site appearance.
- Tool-Less Serviceability: Patented toolless entry for quick lens and LED board changes to minimize downtime.
- Integrated Controls Ready: Zhaga Z10 receptacle supports plug-and-play Bluetooth or standalone sensors and controllers.
- Durable Outdoor Design: Die-cast aluminum housing, powder-coated finish, IP65 wet-location rating, and 10kVA surge protection included.
APPLICATIONS:
- Ideal for parking lots and commercial parking structures.
- Excellent for roadway and perimeter security lighting.
- Well-suited for auto dealerships and campus exteriors.
- Tip: Pair with Zhaga Z10 sensors for adaptive dimming and scheduling to reduce energy costs.
SPECIFICATIONS:
- Wattage: Selectable 100W, 120W or 150W
- Lumens: Selectable 15,000 / 18,000 / 22,000
- Color Temperature: Selectable 3000K, 4000K or 5000K
- CRI: 80
- Voltage: 120-277VAC
- Dimmable: Yes (0-10V)
- Average Life: 100,000 hours
- IP Rating: IP65 (Wet Location)
- Finish: Powder-Coated White
- Included Optics: Type 3 Installed, Type 5 Included (Type 2 & 4 Pair Sold Separately)
- Surge Protection: 10kVA Included
- Power Factor: 0.9
- Amps: 120VAC (1.5A), 277VAC (0.6A)
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium
- Listings: UL Listed For Wet Location
- Other: FCC, RoHS, 3G Vibration
