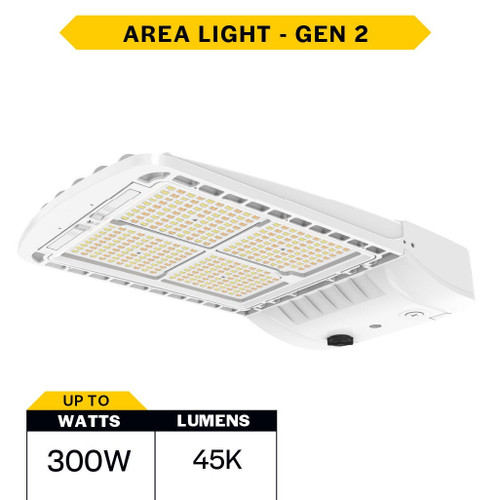

SAL2-4-LS-CS-T35X-U-WH Outdoor Area Luminaire With Zhaga Z10 Receptacle | Selectable Wattage And Field-Changeable Lenses
Designed for demanding outdoor sites, the Halco SekTor Area Light G2 combines field-configurable optics, selectable lumen and CCT settings, and a Zhaga Z10 receptacle to simplify installations and reduce long-term maintenance. Its toolless access, robust die‑cast housing, and integrated surge protection deliver reliable, adaptable illumination for parking lots, campuses, and commercial roadways.
KEY FEATURES:
- Patented Toolless Service: Field-accessible door allows fast lens and LED board replacement without tools, minimizing downtime.
- Selectable Output: On-site selection of 200W, 250W, or 300W to match mounting height and site requirements.
- Color & Optic Flexibility: Choose 3000K, 4000K, or 5000K and swap between installed Type 3 and included Type 5 lenses for optimal distributions.
- Controls-Ready: Built-in Zhaga Z10 receptacle and 3-pin receptacle make adding Bluetooth sensors or photocells plug-and-play.
- Durable Outdoor Design: Diecast aluminum housing, IP65 rating, and 10KVA surge protection for long-term outdoor performance.
APPLICATIONS:
- Outdoor parking lots and perimeter security lighting.
- Auto dealerships and commercial campus roadways.
- Parks and municipal thoroughfares requiring robust site lighting.
- Tip: Pair with Zhaga Z10 sensors or Bluetooth nodes for adaptive dimming and energy savings.
SPECIFICATIONS:
- Wattage: Selectable 200W, 250W, or 300W
- Lumens: Selectable 31,000 / 38,000 / 45,000
- Color Temperature: Selectable 3000K, 4000K, 5000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 120-277VAC
- Amps: 120VAC (3.0A), 277VAC (1.2A)
- Average Life: 100,000 hours
- Power Factor: 0.9
- IP Rating: IP65
- Finish: Powder-Coated White
- Housing Material: Diecast Aluminum
- Lens: Precision TIR Optics; Type 3 Installed, Type 5 Included
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium; UL Listed for Wet Location; FCC; RoHS
- Surge Protection: 10KVA included
- Mounting: Mounts sold separately; multiple mount options and shields available as accessories
