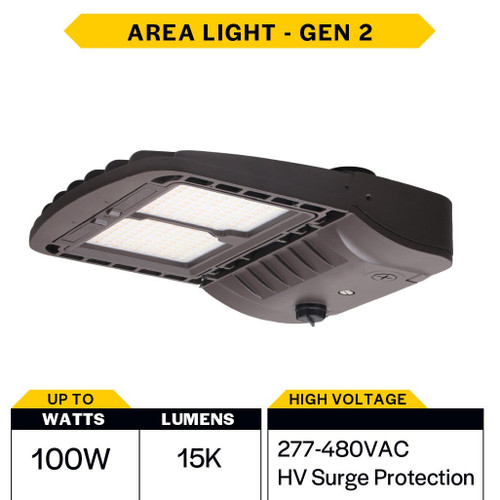

SAL2-1-LS-CS-T35X-H-BZ SekTor Area Light | CCT Selectable Outdoor Area Lighting With Zhaga Z10 And High-Voltage Driver
The SekTor Area Light G2 delivers a flexible, service-friendly outdoor lighting solution for large sites that need configurable performance and minimal maintenance. Field-changeable optics, lumen and CCT selection, plus a factory-installed high-voltage driver make it ideal for rapid upgrades across parking, roadway, and campus projects.
KEY FEATURES:
- Factory Installed HV Driver: High-voltage driver with built-in surge protection for 277-480VAC applications.
- Tool-Less Serviceability: Patented toolless entry allows quick lens and LED board replacement without special tools.
- Selectable Output: Wattage Selectable (60W / 80W / 100W) and Color Selectable (3000K, 4000K, 5000K) for project flexibility.
- Interchangeable Optics: Type 3 lens installed and Type 5 included; Type 2 & 4 available as accessories for precise distributions.
- Sensor-Ready: Zhaga Z10 receptacle enables plug-and-play Bluetooth or standalone sensor nodes; 3-pin receptacle provided for optional photocell.
- Rugged Construction: Die-cast aluminum housing with powder-coated bronze finish and polycarbonate TIR optics for backlight and glare control.
APPLICATIONS:
- Ideal for outdoor parking lots and perimeter site lighting.
- Well suited for roadways, campuses, and auto dealership lighting.
- Designed for commercial and industrial exterior spaces requiring configurable light levels.
- Usage Tip: Use the Zhaga Z10 receptacle to integrate Bluetooth sensors for dimming and scheduling without rewiring.
SPECIFICATIONS:
- Manufacturer: Halco Lighting Technologies
- Wattage: Selectable 60W, 80W, 100W
- Lumens: Selectable 9,400 / 12,000 / 15,000
- Color Temperature: Selectable 3000K, 4000K, 5000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 277-480VAC
- Average Life: 100,000 hours
- Power Factor: 0.9
- IP Rating: IP65 Rated
- Environment: Wet Location
- Finish: Powder-Coated Bronze
- Housing Material: Diecast Aluminum
- Included Optics: Type 3 Installed, Type 5 Included
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- DLC Qualification: DLC 5.1 Premium
- Safety Listings: UL Listed
- Compliance: RoHS, FCC
- Vibration Rating: 3G Vibration
