Description

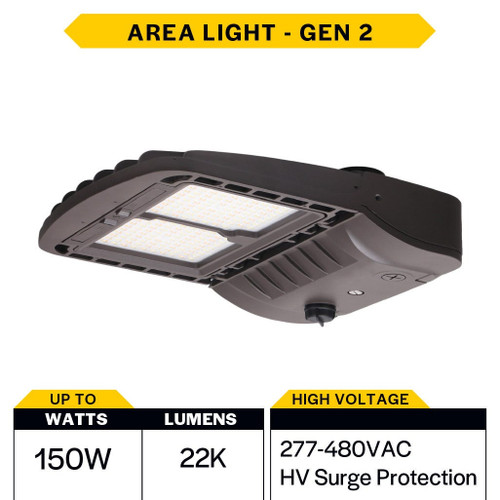

SAL2-2-LS-CS-T35X-H-BZ High-Performance Outdoor Area Luminaire With Changeable Optics And CCT Selectable For Parking And Campus
The SekTor Area Light G2 delivers flexible, specification-grade outdoor illumination that simplifies installations and future upgrades. With field-changeable optics, selectable lumen levels and color temperatures, and an integrated Zhaga Z10 receptacle for plug-and-play controls, this luminaire reduces maintenance time while providing tailored light distribution for parking lots, campuses, and roadways.
KEY FEATURES:
- Field-Changeable Optics: Type 3 lens installed with Type 5 included, enabling quick distribution swaps on site without tools.
- Selectable Output: Choose 100W, 120W, or 150W and corresponding lumen packages to match project requirements and energy budgets.
- Color Flexibility: Selectable 3000K / 4000K / 5000K for optimized visual comfort and task-specific color rendering.
- Control Ready: Built-in Zhaga Z10 receptacle and 3-pin receptacle allow easy integration of Bluetooth sensors, nodes, or photocells.
- Rugged Construction: Die-cast aluminum housing with powder-coated bronze finish and IP65 rating for reliable outdoor performance.
APPLICATIONS:
- Ideal for parking lots and commercial site lighting where adaptable distributions are required.
- Well suited for campus pathways, plazas, and perimeter lighting requiring long-life, low-maintenance fixtures.
- Effective for roadway and street applications needing selectable lumen outputs and precise optics.
- Usage Tip: Use the Zhaga Z10 receptacle to add plug-and-play Bluetooth controls for scheduled dimming and energy savings.
SPECIFICATIONS:
- Wattage: Selectable 100W, 120W or 150W
- Lumens: Selectable 15,000 - 18,000 - 22,000
- Color Temperature: Selectable 3000K, 4000K or 5000K
- CRI: 80
- Average Life: 100000 hours
- Dimmable: Yes (0-10V)
- Voltage: 277-480VAC
- Power Factor: 0.9
- Finish: Powder-Coated Bronze
- Lens: Polycarbonate TIR optics, Type 3 installed, Type 5 included
- IP Rating / Location: IP65 Rated, Suitable For Wet Locations
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium, UL Listed, FCC, RoHS
- Mount: Not included; Straight, Adjustable, Slipfit and Trunnion mounts sold separately as accessories
