SAL2-2-LS-CS-T35X-H-WH High-Voltage LED Area Luminaire | CCT Selectable Sensor-Ready Zhaga Z10 For Parking, Streets, Campus

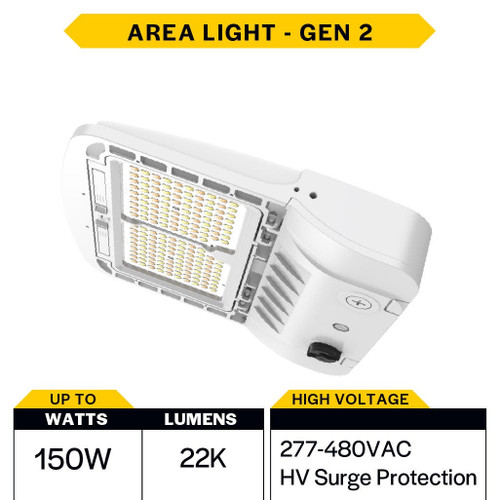

Built for demanding outdoor sites, the Halco 25504 Sektor Area Light G2 pairs field-selectable wattage and color temperature with a factory-installed 277-480VAC driver and surge protection to deliver versatile, low-maintenance illumination for parking lots, roadways, and campus environments.
KEY FEATURES:
- High-Voltage Driver: Factory-installed 277-480VAC driver with HV surge protection for robust performance on high-voltage feeds.
- Field-Serviceable Design: Patented toolless entry enables fast lens and LED board replacement without specialized tools.
- Included Optics: Type 3 lens installed and Type 5 lens included; Type 2 & 4 available as accessories for tailored distributions.
- Selectable Output & CCT: Choose 100W, 120W, or 150W and 3000K/4000K/5000K to match site requirements and energy targets.
- Sensor-Ready Integration: Zhaga Z10 receptacle plus 3-pin photocell receptacle with cap for plug-and-play sensors and optional photocell control.
- Dimming Support: 0-10V dimming compatibility for energy savings and control flexibility.
APPLICATIONS:
- Ideal for parking lots, perimeter security, and campus grounds.
- Well suited for streets, parks, and automotive dealer lots requiring targeted distributions.
- Commercial and industrial site lighting where low maintenance and field adjustability matter.
- Usage Tip: Pair with Zhaga Z10 sensors for occupancy-based dimming and remote control integration.
SPECIFICATIONS:
- Wattage: Selectable 100W, 120W, 150W
- Lumens: Selectable 15,000 / 18,000 / 22,000
- Color Temperature: Selectable 3000K, 4000K, 5000K
- Dimmable: Yes (0-10V)
- Voltage: 277-480VAC
- CRI: 80
- Average Life: 100000 hours
- Power Factor: 0.9
- IP Rating: IP65 Rated (Wet Location)
- Finish: Powder-Coated White
- Housing Material: Diecast Aluminum
- Lens: Polycarbonate Precision TIR Optics with Backlight & Glare Control; Type 3 Installed, Type 5 Included; Field-changeable without tools
- Mount Included: No (Mounts sold separately as accessories)
- Operating Temp Range: -40C to 50C (-40F to 113F)
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: DLC 5.1 Premium; UL Listed for Wet Location; FCC; RoHS
- Environment Rating: Wet Location, IP65
- Controls: Zhaga Z10 receptacle for plug-and-play sensors and controllers; Bluetooth network control options available
