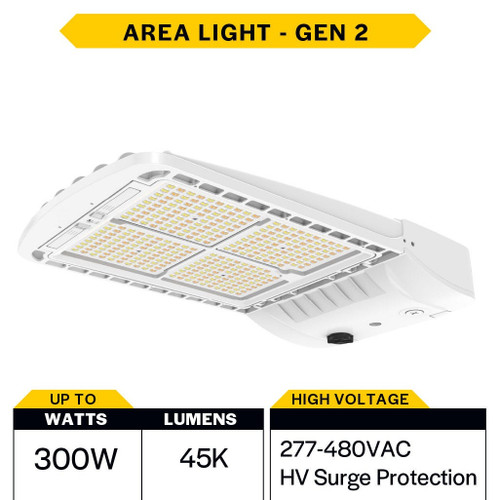

SAL2-4-LS-CS-T35X-H-WH Field-Configurable Area Light | CCT Selectable, HV 277-480V With Zhaga Z10 Receptacle
Designed for fast, low‑maintenance upgrades to parking lots, campuses, and roadways, the Halco SekTor Area Light G2 delivers selectable lumen and color temperature options with field‑replaceable optics and a high‑voltage driver for robust outdoor performance. Its Zhaga Z10 receptacle and tool‑less access simplify sensor integration and servicing while reducing long‑term operational costs.
KEY FEATURES:
- Field Configurable: Selectable wattage (200/250/300W) and CCT (3000K/4000K/5000K) to match site requirements without changing fixtures.
- Robust Outdoor Performance: Factory‑installed HV 277‑480VAC driver with surge protection for reliable operation in high‑voltage systems.
- Serviceable Optics: Tool‑less entry with Type 3 lens installed and Type 5 lens included for quick distribution changes in the field.
- Sensor Ready: Built‑in Zhaga Z10 receptacle and 3‑pin receptacle with cap for easy plug‑and‑play sensor or photocell integration.
- Durable Construction: Die‑cast aluminum housing with powder‑coat finish and IP65 rated for wet locations.
APPLICATIONS:
- Ideal for parking lots, exterior roadways, and campus grounds requiring adaptable illumination.
- Well suited for auto dealerships and parks where multiple distributions and lumen outputs are needed.
- Great for municipal and commercial site lighting projects that demand long life and low maintenance.
- Installation Tip: Use the Zhaga Z10 receptacle to add Bluetooth or standalone sensors for occupancy and daylight harvesting.
SPECIFICATIONS:
- Wattage: Selectable 200W, 250W, 300W
- Lumens: Selectable 31,000 / 38,000 / 45,000
- Color Temperature: Selectable 3000K, 4000K, 5000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 277-480VAC
- Average Life: 100,000 hours
- Power Factor: 0.9
- Lens: Precision TIR Optics; Type 3 installed, Type 5 included
- Housing: Die‑cast Aluminum, Powder‑Coated White
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium
- Listings: UL Listed; IP65 Rated for Wet Locations
- Warranty: 5 years
