Description

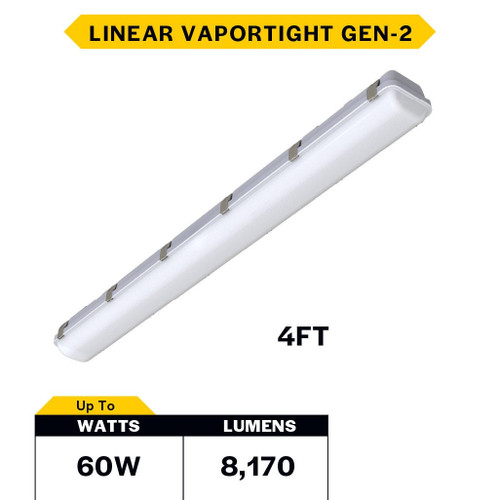

LVPT-4-LS-CS-U 4ft Selectable Lumen & CCT Vaportight | CCT Selectable | IP66 Wet Location, 0-10V Dimming For Industrial Use
Designed for harsh, wet, and control-ready environments, this 4ft linear vaportight reduces stocking complexity with field-selectable lumen and CCT settings, offers smooth 0-10V dimming, and simplifies sensor integration via an internal 3.5 mm jack for reliable, low-maintenance illumination.
KEY FEATURES:
- Selectable Outputs: Choose 5600, 6900, or 8170 lumens with 40W, 50W, or 60W settings to match application needs.
- CCT Flexibility: Field-selectable 3500K, 4000K, or 5000K to tune task and ambient lighting.
- Sensor-Ready: Integrated 3.5 mm audio jack for plug-and-play microwave or TruBlu sensors for occupancy and daylight control.
- 0-10V Dimming: Smooth dimming compatibility for energy savings and precise light level control.
- Rugged Construction: Impact-resistant polycarbonate frosted lens, polycarbonate housing, and stainless steel clips for tooless entry.
- Wet-Location Rated: IP66 protection for demanding washdown and outdoor canopy applications.
- Included Mounting: Surface brackets plus V-hooks and chains for suspended installation (aircraft cables sold separately).
- Long Life & Warranty: 75,000 hour average life with a 5-year limited warranty.
APPLICATIONS:
- Parking garages and exterior canopy lighting.
- Food processing and NSF-rated washdown areas.
- Cold storage and industrial manufacturing facilities.
- Usage Tip: Use the integrated 3.5 mm jack with a compatible microwave sensor for automated control and energy savings.
SPECIFICATIONS:
- Manufacturer: Halco Lighting Technologies
- Size: 4ft
- Wattage: Selectable 40W / 50W / 60W
- Lumens: Selectable 5600 / 6900 / 8170
- Color Temperature: Selectable 3500K, 4000K, 5000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 120-277V
- Average Life: 75,000 hours
- Power Factor: 0.9
- Operating Temp: -40C to 45C (-40F to 113F)
- Lens: Impact Resistant Polycarbonate Frosted Lens
- Housing: Polycarbonate
CERTIFICATIONS & ADDITIONAL NOTES:
- Qualification: DLC 6.0 Premium
- Location Rating: Wet Location, IP66
- Safety: UL Listed
- Other: NSF, FCC
