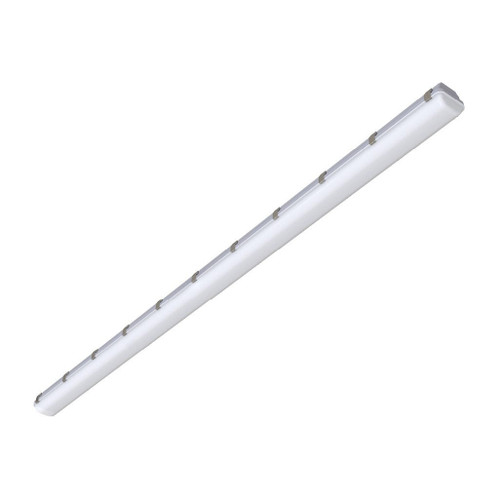

LVPT-8-LS-CS-U Linear Vaportight Fixture | Selectable CCT & Lumen Outputs for IP66 Wet Location with Sensor Jack
Built for demanding wet and dusty environments, this 8ft linear vaportight provides flexible illumination options and simplifies sensor integration for commercial and industrial spaces. With selectable lumen and color temperature outputs plus a plug-and-play 3.5 mm sensor jack, the fixture reduces SKU complexity while delivering reliable, long-life performance.
KEY FEATURES:
- Selectable Output: Choose from three lumen and wattage settings (8340/10275/12195 lm at 60W/75W/90W) to match task needs and save energy.
- Selectable CCT: Field-selectable color temperatures let you switch between 3500K, 4000K, or 5000K to suit application requirements.
- Sensor-Ready: Integrated 3.5 mm audio jack supports plug-and-play microwave sensors for easy occupancy or networked control upgrades.
- Rugged, Wet-Rated Design: IP66 rating and NSF suitability ensure dependable performance in harsh, wet, or washdown locations.
- Flexible Mounting: Includes surface brackets plus V-hooks and chains for suspended mounting; stainless steel clips provide tool-less entry.
APPLICATIONS:
- Parking garages and exterior covered areas requiring durable, wet-rated illumination.
- Cold storage and industrial processing facilities where reliable performance at low temperatures is critical.
- Food processing and washdown environments (NSF rated) that need IP66 protection.
- Installation Tip: Use included V-hooks and chains for standard suspension; order aircraft cables separately for longer drops.
SPECIFICATIONS:
- Wattage: Selectable 60W, 75W, 90W
- Lumens: Selectable 8,340 / 10,275 / 12,195
- Color Temperature: Selectable 3500K, 4000K, 5000K
- Dimmable: Yes (0-10V)
- Voltage: 120-277V
- Size: 8 ft
- CRI: 80
- Average Life: 75,000 hrs
- IP Rating: IP66
- Mount Included: Surface brackets; V-hooks & chains for suspended mount
- Weight: 14.49 lbs
- Warranty: 5-year limited warranty
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: DLC 6.0 Premium, UL Listed
- Location Rating: Wet Location; NSF Rated
- Controls: 3.5 mm audio jack internal receptacle for plug-and-play microwave sensors; network controls coming soon
