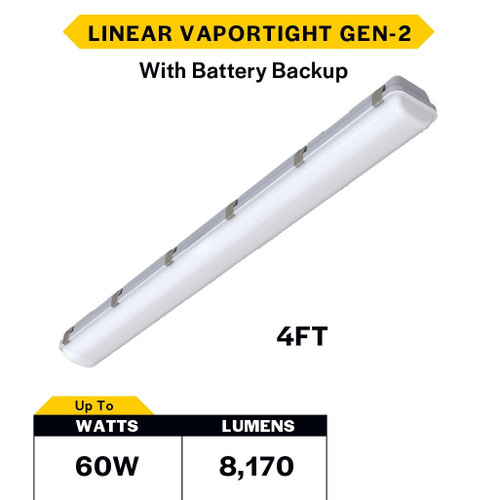

LVPT-4-LS-CS-U-EM IP66 Wet Linear Vaportight | CCT Selectable 4ft Fixture With 90-Min Emergency Driver And Sensor Jack
Built for demanding wet and industrial environments, the Halco LVPT-4-LS-CS-U-EM delivers selectable lumen and CCT outputs plus an integrated 90-minute emergency driver to minimize downtime and simplify retrofit or new-construction installs. Its IP66 rating, durable polycarbonate housing, and plug-and-play 3.5 mm sensor jack make it a low-maintenance, control-ready linear vaportight for parking garages, food processing, and industrial facilities.
KEY FEATURES:
- Selectable Output: Choose 40W/50W/60W and corresponding lumen packages (5600/6900/8170) to match lighting and energy targets.
- CCT Flexibility: Switch between 3500K, 4000K, or 5000K to tailor color temperature for each space or task.
- Emergency Backup: Internal 90-minute emergency driver provides reliable egress lighting during outages.
- Controls Ready: Integrated 3.5 mm audio jack supports plug-in microwave or control sensors for easy occupancy or networked control integration.
- Rugged Wet-Rated Design: IP66 housing and impact-resistant polycarbonate lens stand up to harsh, wet, or dusty conditions.
- 0-10V Dimming: Supports smooth dimming and integration with standard lighting controls.
- Easy Installation: Includes surface-mount brackets and V-hooks with chains for suspended mounting.
APPLICATIONS:
- Ideal for parking garages and covered exterior walkways requiring wet-location fixtures.
- Well suited to food processing and cold storage facilities (NSF rated environments).
- Perfect for industrial and manufacturing sites that need durable, low-maintenance lighting.
- Tip: Use the 3.5 mm sensor jack to add a plug-in microwave sensor for occupancy-based dimming and energy savings.
SPECIFICATIONS:
- Size: 4ft
- Wattage: Selectable 40W, 50W, 60W
- Lumens: Selectable 5600 / 6900 / 8170
- Color Temperature: Selectable 3500K, 4000K, 5000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 120-277V
- Average Life: 75,000 hours
- Power Factor: 0.9
- Operating Temp: -40C to 45C (-40F to 113F)
- Lens: Impact Resistant Polycarbonate Frosted Lens
- Housing Material: Polycarbonate
- Mount Included: Surface brackets; V-hooks and chains for suspended mount
- Weight: 8.15 lbs (per item)
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 6.0 Premium; UL Listed; NSF; FCC
- Location Rating: IP66 Wet Location
- Warranty: 5-year limited warranty
