Description

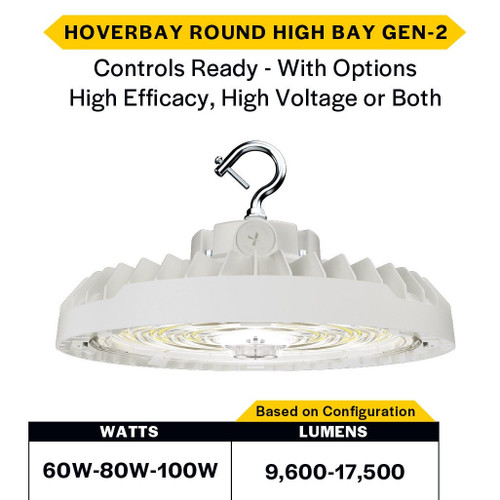

HRHB-1-LS-CS-H-WH High Bay | Field-Selectable Color Temp & Adjustable Lumen Output For Industrial Spaces
The Halco HoverBay Round High Bay delivers flexible, serviceable LED illumination for warehouses, distribution centers, gymnasiums, and big-box retail. Field-selectable lumen outputs and selectable color temperatures simplify stocking and on-site tuning while a tool-less, swappable driver and LED board reduce maintenance time and downtime.
KEY FEATURES:
- Field Flexibility: Selectable lumen outputs (9,600 / 12,800 / 16,000 lm) and selectable color temperatures for right-sized light levels on installation.
- Easy Serviceability: Tool-less access with swappable LED board and driver enables fast field repairs and upgrades.
- Durable Construction: Die-cast aluminum housing with impact-resistant polycarbonate lens and powder coat finish for harsh indoor environments.
- Control Ready: Built-in 3.5mm receptacle for plug-and-play standalone or TruBlu Bluetooth controls; 0-10V dimming supported.
- Wet Location Rated: IP65 enclosure with 6kV surge protection for reliable performance in dusty, humid, or wet settings.
APPLICATIONS:
- Ideal for warehouses, distribution centers, and manufacturing floors requiring high-bay illumination.
- Well suited for gymnasiums and big-box retail environments seeking consistent, adjustable light levels.
- Perfect for retrofits where reduced maintenance and tunable output simplify operations.
- Installation Tip: Use the selectable lumen and beam-angle options to match aisle spacing and ceiling height for optimal uniformity.
SPECIFICATIONS:
- Color Temperature: Selectable 3500K, 4000K, 5000K
- Wattage / Lumen Output: Selectable 60W / 9,600 lm, 80W / 12,800 lm, 100W / 16,000 lm
- Dimmable: Yes (0-10V)
- Average Life: 100,000 hours
- CRI: 80
- Beam Angle: Selectable 60°, 90° to 110°
- Power Factor: 0.9
- Operating Temp: -40°C to 55°C (-40°F to 131°F)
- Included Accessory: Safety Cable & Hook
- Mount: Hook included (pendant, yoke, chain, J-box options available separately)
- Lens: Polycarbonate
- Housing: Die-cast Aluminum with Powder Coated Finish
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 6.0 Premium, UL Listed, FCC, RoHS
- Location Rating: IP65 - Wet Location Rated
- Additional: 6kV Surge Protection; TruBlu network control capable (gateways sold separately)
