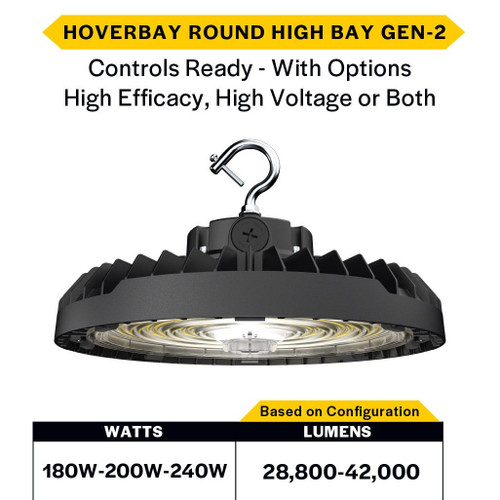

HRHB-4-LS-CS-H-BL High-Output Round High Bay | 3-CCT Field Selectable And Multiple Lumen Settings For Warehouses, Gyms, And Retail
Built for demanding commercial and industrial environments, the HoverBay Round High Bay provides versatile, service-friendly illumination with field-adjustable lumen and color settings, rugged IP65 protection, and tool-less access to reduce downtime and simplify maintenance.
KEY FEATURES:
- Field-Adjustable Output: Selectable lumen packages (28,800 / 32,000 / 38,400 lm) with wattage options of 180W, 200W, or 240W to match space requirements.
- Color Flexibility: 3-CCT field selectable (3500K, 4000K, 5000K) for precise color tuning on site.
- Adaptive Distribution: Three beam options (60°, 90°, 100°) for narrow-aisle, standard, or wide-area coverage.
- Serviceable Design: Tool-less access with swappable driver and LED board simplifies replacement and lowers maintenance time.
- Durable Construction: Die-cast aluminum housing with impact-resistant polycarbonate lens and powder-coated finish for long-term reliability.
- Control Ready: Built-in 3.5mm receptacle for standalone or Bluetooth controls; TruBlu gateways and sensors supported (sold separately).
- Included Accessories: Safety cable and steel hook included; 6ft 18/3 shielded power cord for fast installation.
- Options & Protection: Emergency backup available; 6kV surge protection and wide operating range from -40°C to 55°C.
APPLICATIONS:
- Ideal for warehouses and distribution centers requiring flexible high-bay layouts.
- Well suited for gymnasiums and indoor athletic facilities needing even, powerful illumination.
- Perfect for big-box retail and showrooms where adjustable output and color tuning improve merchandising.
- Usage Tip: Use narrow 60° beam for racked aisles and wider beams for open floor areas to optimize lumen placement.
SPECIFICATIONS:
- Wattage: Selectable 180W, 200W, 240W
- Lumens: 28,800 lm; 32,000 lm; 38,400 lm
- Color Temperature: 3500K, 4000K, 5000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Beam Angles: Selectable 60°, 90°, 100°
- Average Life: 100,000 hours
- Power Factor: 0.9
- Operating Temperature: -40°C to 55°C
- Ingress Protection: IP65, Wet Location Rated
- Housing: Die-cast Aluminum with Polycarbonate Lens
- Included Accessory: Safety Cable & Hook
- Mounting: Hook included; pendant, yoke (u-bracket), chain, and J-box options available
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 6.0 Premium, UL Listed, FCC, RoHS
- Location Rating: Suitable For Wet Locations
- Surge Protection: 6kV
- Service & Options: Emergency backup available; TruBlu Bluetooth control compatible (gateways sold separately)
