Description

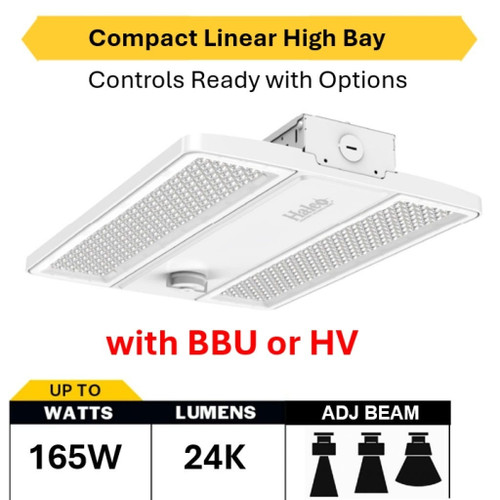

CLHB-2-LS-CS-U Compact Linear High Bay Fixture | Field-Adjustable Output And Beam Angle For Warehouses And Gymnasiums With Zhaga Z-10
Designed for quick installs in large indoor facilities, the Halco CLHB compact linear high bay combines selectable lumen and color output with an adjustable beam to simplify layout and reduce maintenance in warehouses, gymnasiums, and retail environments.
KEY FEATURES:
- Compact Installer-Friendly Design: Die-cast aluminum housing reduces shipping and makes mounting easier while providing superior heat dissipation.
- Field-Selectable Output: Select 140W, 150W or 160W and choose lumen output on site to match application needs.
- Selectable Color Temperature: Switch between 3500K, 4000K or 5000K for task-appropriate lighting.
- Adjustable Beam Angle: Simple switch offers Narrow, Standard or Wide distributions (90x90, 45x100, 65x90).
- Sensor-Ready Controls: Built-in Zhaga Z-10 receptacle enables plug-and-play sensors (TruBlu gateways sold separately).
- Dimming: 0-10V dimming compatible for flexible light level control.
- Long Life: Rated for 100,000 hours to minimize replacement and maintenance.
- Includes Mounting Hardware: Supplied with suspension chain and V-hooks for immediate installation.
APPLICATIONS:
- Ideal for warehouses and distribution centers.
- Perfect for gymnasiums and athletic facilities.
- Well-suited to retail and big-box environments.
- Installation Tip: Use Zhaga-compatible occupancy or daylight sensors to maximize energy savings.
SPECIFICATIONS:
- Wattage: Selectable 140W, 150W or 160W
- Lumens: 19,700 / 22,500 / 24,200 LM
- Color Temperature: Selectable 3500K, 4000K, 5000K
- CRI: 80
- Beam Angle: 90x90, 45x100, 65x90 Deg
- Average Life: 100,000 hours
- Dimmable: Yes (0-10V)
- Power Factor: 0.90
- Operating Temp Range: -40C to 55C (-40F to 131F)
- IP Rating: IP20
- Mount Included: Suspension Chain & V-Hooks
- Finish: White
- Lens: Polycarbonate
- Housing Material: Die-cast aluminum
- Controls: Zhaga Z-10 receptacle; TruBlu gateway compatible
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- DLC Status: DLC 6.0 Premium Qualified
- Safety: UL Listed
- Environment: Suitable For Damp Locations
- RoHS: Yes
