Description

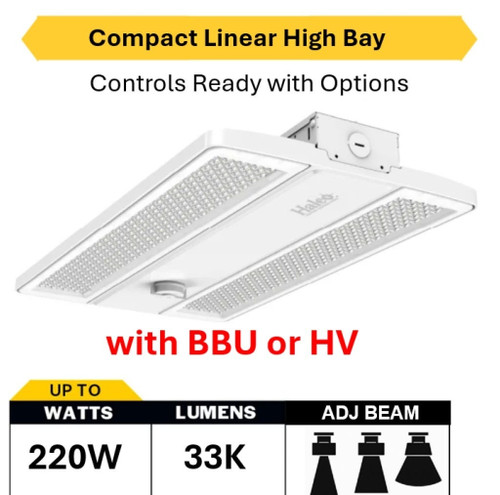

CLHB-3-LS-CS-U Linear High Bay With Zhaga Z10 | Color Selectable Soft White To Daylight, Adjustable Beam Angles
Installer-friendly compact linear high bay designed to simplify retrofits and new installs in large indoor spaces. Field-selectable lumen output, CCT, and beam angle let contractors tune light levels and distribution on site, while the Zhaga Z10 receptacle enables fast plug-and-play sensor integration for energy savings and smarter controls.
KEY FEATURES:
- Field Selectable Output: Choose between 28,300–33,300 lumens and selectable wattages (180W, 220W, 240W) to match application needs.
- Color & Beam Flexibility: Select 3500K, 4000K, or 5000K and narrow, standard, or wide beam angles using onboard switches for optimal illumination.
- Sensor Ready: Built-in Zhaga Z-10 receptacle supports standalone or Bluetooth control modules for easy occupancy and daylighting controls.
- Robust Construction: Die-cast aluminum housing with a polycarbonate lens for durable, long-lasting performance.
- Included Mounting: Ships with suspension chain and V-hooks for quick hanging installations.
- Dimmable: 0–10V dimming compatibility for integration with building control systems.
- Long Life & Warranty: Rated for 100,000 hours average life with a 5-year limited warranty.
APPLICATIONS:
- Ideal for warehouses and distribution centers.
- Well suited for gymnasiums and recreational facilities.
- Designed for big-box and retail environments.
- Installation Tip: Use the included chain and V-hooks for suspension mounting and add Zhaga sensor modules for occupancy-based energy savings.
SPECIFICATIONS:
- Wattage: Selectable 180W, 220W, 240W
- Lumens: 28,300 - 30,800 - 33,300 LM
- Average Life: 100,000 hours
- Color Temperature: Selectable 3500K, 4000K, 5000K
- CRI: 80
- Beam Angle: 90x90°, 45x100°, or 65x90° (Selectable Narrow, Standard, or Wide)
- Dimmable: Yes (0–10V)
- Power Factor: 0.9
- Operating Temp Range: -40°C to 55°C (-40°F to 131°F)
- Included Accessory: Suspension Chain & V-hooks
- Finish: White
- Lens: Polycarbonate
- Housing Material: Die-cast aluminum
- IP Rating / Environment: IP20, Suitable for Damp Locations
- Warranty: 5-year limited warranty
CERTIFICATIONS & ADDITIONAL NOTES:
- Qualification: DLC 6.0 Premium (also listed as DLC 5.1 Premium)
- Listings: UL Listed
- Compliance: FCC, RoHS
- Location Rating: Damp Location
