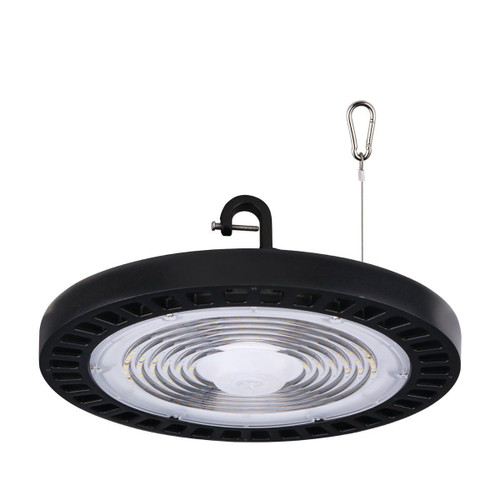

ERHB-100-50-U High-Efficiency 100W Industrial Round High Bay For Warehouses And Gyms | Daylight (5000 K) | IP65 Wet Rated
Designed for fast, reliable illumination in large industrial and commercial spaces, the ERHB-100-50-U Halco ProLED Essential Round Highbay delivers high lumen output and durable IP65 construction to reduce maintenance and provide consistent Daylight color for operational efficiency.
KEY FEATURES:
- High Output: 14,000 lumens from a 100W platform provides bright, even illumination for large areas.
- Durable Construction: Die-cast aluminum housing with powder coat and polycarbonate lens resists damage and corrosion in harsh environments.
- Weatherproof: IP65 Wet Rated for reliable outdoor or indoor damp-location performance.
- Integrated Protection: Built-in 6kv driver surge protection and DOT design improve longevity and thermal performance.
- Easy Installation: Includes 6' power cord and 1/2" NPT steel hook; optional yoke or pendant mounts simplify mounting choices.
APPLICATIONS:
- Warehouses
- Gymnasiums
- Big Box And Retail Stores
- Use the included hook or optional yoke/pendant for quick mounting in high-ceiling applications.
SPECIFICATIONS:
- Wattage: 100W
- Lumens: 14,000
- Efficacy: 140 lm/W
- Color Temperature: 5000K
- CRI: >80
- Voltage: Universal 120-277VAC
- Amperage: 120VAC (0.83A); 277VAC (.036A)
- Dimming: 0-10VDC Dimming
- Surge Protection: 6kv Driver Surge Protection
- Housing: Die-cast Aluminum with Powder Coated Finish
- Lens: Polycarbonate Lens
- Operating Temperature: -30°C to 50°C
- Lifetime: >50,000 Hrs L70
- Power Factor: 0.9
- Distribution: 90 Degree
- Warranty: 5 Years Standard
- Environment: IP65 Wet Rated
- Listings: UL, cUL, DLC Premium, FCC, RoHS
